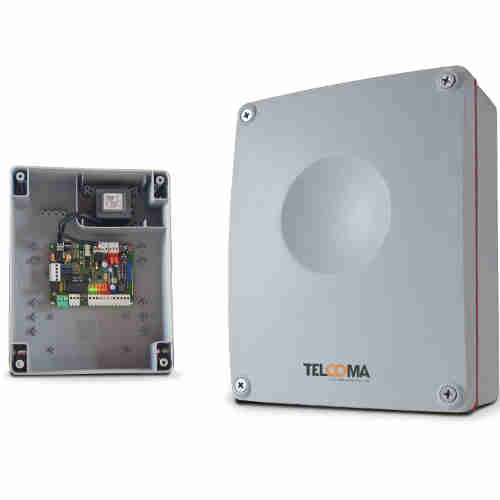

T101 CONTROL UNIT

122,00 + TAX

In stock

T101 ELECTRONI CONTROL UNIT 230V

T 101 ELECTRONIC CONTROL UNIT FOR TWO 230V MOTORS
Control unit T101 for 1 motor 230 Vdc, with torque adjustment, slowing down and encoder.
Encoder controlled programmer with torque limitation, deceleration
and safety device exclusion via dip-switch:
- new external 32VA transformer;
- third programming button;
- flashing warning light output;
- second channel OC2 output (contact US1);
- terminal blocks for motor capacitor connection;
- connection for the keypad TAST3F;
- BSA and BSC inputs for 8K2 safety edges.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare

T101 ELECTRONI CONTROL UNIT 230V

T 101 ELECTRONIC CONTROL UNIT FOR TWO 230V MOTORS
Control unit T101 for 1 motor 230 Vdc, with torque adjustment, slowing down and encoder.
Encoder controlled programmer with torque limitation, deceleration
and safety device exclusion via dip-switch:
– new external 32VA transformer;
– third programming button;
– flashing warning light output;
– second channel OC2 output (contact US1);
– terminal blocks for motor capacitor connection;
– connection for the keypad TAST3F;
– BSA and BSC inputs for 8K2 safety edges.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

T101 ELECTRONIC CONTROL UNIT 230V  TELCOMA CARDIN

MAINS POWER SUPPLY 230Vac
MOTOR OUTPUT: 1
SINGLE PHASE 230Vac
THREE PHASE 400V3~
PROTECTION GRADE IP55
FIREPROOFING GRADE V2
Electronic devices for the control of automatic opening systems with one or two
gate leaves.
Specially studied and designed for this type of use, these Cardin
programmers are fitted with digital time programming.
Dedicated to 230Vac and 400V3~ motors (T400) they intelligently manage the
movement of the gate.

The appliances either work with encoder controlled or timer controlled gate
positioning (automatic system detection).
The complete range of products have been designed and constructed in
accordance with the safety standards in force and feature automatic, semiautomatic
and remote control functions.
The complete range of programmers simplifies and solves all possible installation
problems. The high product-quality level together with accurate design and a
selective choice of materials allows trouble free operation and maximum reliability
under all kinds of working conditions.

Open collector T 101:
The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
Cardin catalogue.

TECHNICAL SPESIFICATIONS  T101

Power supply                                            230 Vac
Motor power supply                                   230 Vac
Motor output                                             n. 1
Max. motor power                                     1×800  VA
Protection level                                         IP 56
Connector for CS2/SR receiver                    YES
Electronic torque adjustment                      YES
Encoder                                                    YES
Self-learning times                                    YES
Step-by-step push button                           YES
Open push button                                      YES*
Close push button                                     YES*
Stop push button                                       YES
Limit switch                                               YES
Photocell                                                   YES
Automatic closure                                      YES
Slowing down                                            YES
Electronic brake                                         NO

ACCESSORIES T101

SERIE OC2
2 channels plug in receiver.

LACO22A
Flashing light 24 V (only lamp) with built in 433 MHz antenna.

Additional information

Weight 5 kg
Dimensions 0,30 × 0,40 × 0,20 m
