Control units
-
CC242ETOP

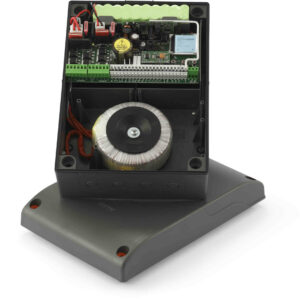

CC242ETOP – GRAPHIC DISPLAY CONTROL UNIT FOR 1 OR 2 24V MOTORS + CHARGER + NiMH BATTERIES
CC242ETOP – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR THE MANAGEMENT
OF ONE OR TWO ENCODER-CONTROLLED MOTORSElectronic CC242ETOP control unit programmer for encoder-controlled 24Vdc motors that allow
the precise position control of hinged and sliding gates fitted with a
multi-decoding module S449 – S486 – S504 – S508.
Batteries and battery charger in the CC242ETOPCB and
CC242EXTOPCB versions.The electronic CC242ETOP control unit programmer is factory fitted with a graphic LCD display
(128 x 128 pixels) with backlighting in six different languages.
The menu allows you to read the number of manoeuvres carried out
and to rapidly set the system parameters including: the sequential button
mode, automatic reclosing, warning lamp pre-flashing, intermittent
warning lamp activation, indicator light, photoelectric cell function setting
and electric lock enable etc.€252,00 + TAXCC242ETOP
€252,00 + TAX -
CC242ETOPCB
CC242ETOPCB – GRAPHIC DISPLAY CONTROL UNIT FOR 1 OR 2 24V MOTORS + CHARGER + NiMH BATTERIES
CC242ETOPCB – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR THE MANAGEMENT
OF ONE OR TWO ENCODER-CONTROLLED MOTORS + charger and NiMH batteriesElectronic CC242ETOPCB control unit programmer for encoder-controlled 24Vdc motors that allow
the precise position control of hinged and sliding gates fitted with a
multi-decoding module S449 – S486 – S504 – S508.
Batteries and battery charger in the CC242ETOPCB and
CC242EXTOPCB versions.The electronic CC242ETOPCB control unit programmer is factory fitted with a graphic LCD display
(128 x 128 pixels) with backlighting in six different languages.
The menu allows you to read the number of manoeuvres carried out
and to rapidly set the system parameters including: the sequential button
mode, automatic reclosing, warning lamp pre-flashing, intermittent
warning lamp activation, indicator light, photoelectric cell function setting
and electric lock enable etc.€321,00 + TAXCC242ETOPCB
€321,00 + TAX -
CC242EXTOPCB
CC242EXTOPCB – GRAPHIC DISPLAY CONTROL UNIT FOR 1 OR 2 24V MOTORS + CHARGER + NiMH BATTERIES
CC242EXTOPCB – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR THE MANAGEMENT
OF ONE OR TWO ENCODER-CONTROLLED MOTORS + charger and NiMH batteriesElectronic CC242EXTOPCB control unit programmer for encoder-controlled 24Vdc motors that allow
the precise position control of hinged and sliding gates fitted with a
multi-decoding module S449 – S486 – S504 – S508.
Batteries and battery charger in the CC242ETOPCB and
CC242EXTOPCB versions.The electronic CC242EXTOPCB control unit programmer is factory fitted with a graphic LCD display
(128 x 128 pixels) with backlighting in six different languages.
The menu allows you to read the number of manoeuvres carried out
and to rapidly set the system parameters including: the sequential button
mode, automatic reclosing, warning lamp pre-flashing, intermittent
warning lamp activation, indicator light, photoelectric cell function setting
and electric lock enable etc.€336,00 + TAXCC242EXTOPCB
€336,00 + TAX -
INTBTC4 BLUETOOTH INTERFACE
INTBTC4 – BLUETOOTH INTERFACE IN BOX (12 / 24Vac-dc).
INTBTC4 – BLUETOOTH INTERFACE WITH FOUR RELAYS
The interface with a Bluetooth module allows the control of four relays
with NO or NC contacts. The selection dip-switches (one block per
relay) allow you to select the relay’s activation method: impulsive, ON/
OFF, timer controlled or remotely controlled relay activation using the
programming calender in the Cardin multiprotocol interface Cardin
RCQ504/508W00. The programming buttons (one per relay) allow
you to set the activation times for the relays (from 1 s to 5 min) for
the timer controlled mode.
The Bluetooth module MODBT is to be ordered separately.
Power supply 12/24Vac-dc.
Electrical input 50mA.
Overall dimensions 95 x 75 x 25.
Indoor box IP20€60,00 + TAXINTBTC4 BLUETOOTH INTERFACE
€60,00 + TAX -
KT-RQM504C1-TXQ504C2
RQM504C2 – 433MHz STANDARD MIN 2-CHANNEL RECEIVER IN BOX (12 / 24Vac-dc).
RQM504C2 – 433MHz STANDARD INDOOR MINI 2-CHANNEL RECEIVER IN BOX (12 / 24Vac-dc).
The unit RQM504C2 is an electronic circuit with a 10-way terminal block; Fitted with 2 relay
channels which can be set to ON/OFF or impulsive.
Possibility of memorising up to 1000 codes.ABS indoor enclosure – IP20.
Overall dimensions(mm) 95 x 75 x 25.€99,00€130,00+ TAXKT-RQM504C1-TXQ504C2
€99,00€130,00+ TAX -
PRG230M2
PRG230M2 – ELECTRONIC MICROPROCESSOR CONTROL UNIT FOR 230V MOTORS
PRG230M2 – ELECTRONIC PROGRAMMERS FOR THE CONTROL OF TWO 230V MOTORS
WITH MAXIMUM POWER YIELD 470 + 470W
Digital work time control separately memorised for each gate leaf guided by a
6-digit display. Possible operation without mechanical travel limits. Torque setting.
Maximum power initial thrust control, torque limitation and deceleration
management with deceleration zone control. The appliance is fitted with an
interface for the insertion of a standard Cardin radio receiver card.
Suitable for the control of automatic gates and doors with two 230V motors.MAINS POWER SUPPLY 230Vac
MOTOR OUTPUT 230Vac
PROTECTION GRADE IP55
FIREPROOFING GRADE V2
INTERFACE FOR A STANDARD SLOT-IN RADIO CARD
COMMAND INPUTS: TA, TC, TD, TB.
ELECTRONIC PROGRAMMERS
LED DISPLAY€168,00 + TAXPRG230M2
€168,00 + TAX -
PRG302E
PRG302E – ELECTRONIC MICROPROCESSOR CONTROL UNIT FOR 230V MOTORS
PRG302E – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR TWO 230V MOTORS
WITH MAXIMUM POWER YIELD 600W.
Digital work time control. Possible operation without mechanical travel limits.
Command inputs: TA, TC, TD, TB. The appliance is fitted with an interface for the
insertion of a standard Cardin radio receiver card (complete with cable glands
Ø 2 x Ø9mm + Ø 2 x Ø16mm).
Suitable for the control of automatic road barriers.€109,00 + TAXPRG302E
€109,00 + TAX -
PRG304E
PRG304E – ELECTRONIC MICROPROCESSOR CONTROL UNIT FOR 230V MOTORS
PRG304E – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR TWO 230V MOTORS
WITH MAXIMUM POWER YIELD 650W.
ELECTRONIC CONTROL UNIT, BASIC VERSION
Digital work time control. Command inputs: TA, TC and TB. Security inputs:
photocells, safety edge (N.C. contact or 8.2 kΩ), digital safety edge.
Output for a courtesy light 230Vac 300W and for a led warning light. The
appliance is supplied with a S449, 433MHz, FM decoder.
Suitable for the control of automatic rolling shutters.€121,00 + TAXPRG304E
€121,00 + TAX -
PRG304ETC
PRG304ETC – ELECTRONIC MICROPROCESSOR CONTROL UNIT FOR 230V MOTORS
PRG304ETC – ELECTRONIC CONTROL UNIT PROGRAMMERS FOR TWO 230V MOTORS
WITH MAXIMUM POWER YIELD 650W.
ELECTRONIC PROGRAMMER WITH EXTERNAL CONTROL BUTTONS
Digital work time control. Command inputs: TA, TC and TB. Security inputs:
photocells, safety edge (N.C. contact or 8.2 kΩ), digital safety edge.
Output for a courtesy light 230Vac 300W and for a led warning light. The
appliance is supplied with a S449, 433MHz, FM decoder.
Suitable for the control of automatic rolling shutters.€156,00 + TAXPRG304ETC
€156,00 + TAX -
PRG3830CE
PRG383OCE – INDUSTRIAL PROGRAMMER CONTROLLING ONE THREE PHASE MOTOR
PRG383OCE – INDUSTRIAL PROGRAMMER OR CONTROL UNIT CONTROLLING ONE THREE PHASE MOTOR 230V 400V.
INDUSTRIAL PROGRAMMER CONTROLLING ONE SINGLE PHASE / THREE PHASE MOTOR
ELECTRONIC CONTROL UNIT, BASIC VERSION
– 370W single phase power supply 230Vac,
– 700W three phase power supply 400Vac.Automatic, semiautomatic, manual and remote control functions.
Command inputs TA, TB, TC, TD, TAL.
Incorporated door security switch.
Optional external control buttons.
Electric brake output.
Interface for a standard slot-in radio receiver card.
Supplied with 4 x Ø16mm cable glands.
The control unit is supplied with 4 x Ø16mm cable glands.
The PRG383OCE control unit is Suitable for the control of industrial gates and doors with one three
phase motor.€258,00 + TAXPRG3830CE
€258,00 + TAX -
PRG383TCE
PRG383TCE – INDUSTRIAL PROGRAMMER CONTROLLING ONE THREE PHASE MOTOR
PRG383TCE – INDUSTRIAL PROGRAMMER OR CONTROL UNIT CONTROLLING ONE THREE PHASE MOTOR 230V 400V.
INDUSTRIAL PROGRAMMER CONTROLLING ONE SINGLE PHASE / THREE PHASE MOTOR
ELECTRONIC PROGRAMMER WITH EXTERNAL CONTROL BUTTONS
– 370W single phase power supply 230Vac,
– 700W three phase power supply 400Vac.Automatic, semiautomatic, manual and remote control functions.
Command inputs TA, TB, TC, TD, TAL.
Incorporated door security switch.
Optional external control buttons.
Electric brake output.
Interface for a standard slot-in radio receiver card.
Supplied with 4 x Ø16mm cable glands.
The control unit is supplied with 4 x Ø16mm cable glands.
The PRG383TCE control unit is Suitable for the control of industrial gates and doors with one three
phase motor.€276,00 + TAXPRG383TCE
€276,00 + TAX -
PRG3840CE
PRG3840CE – INDUSTRIAL PROGRAMMER CONTROLLING ONE THREE PHASE MOTOR
PRG3840CE – INDUSTRIAL PROGRAMMER CONTROLLING ONE THREE PHASE MOTOR 400V.
– 2200W three phase power supply 400V.
Automatic, semiautomatic, manual and remote control functions.
Command inputs TA, TB, TC, TD, TAL.
Incorporated door security switch.
Optional external control buttons.
Electric brake output.
Interface for a standard slot-in radio receiver card.
Supplied with 4 x Ø16mm cable glands.
Suitable for the control of industrial gates and doors with one three
phase motor.€276,00 + TAXPRG3840CE
€276,00 + TAX
