DOMOPARK230E

875,00 + TAX

In stock

DOMOPARK230E - ELECTROMECHANICAL PARKING SAVER

DOMOPARK230E / DOMOPARK230 E - ELECTROMECHANICAL PARKING SAVER
Automatic parking safe DOMOPARK230 or DOMOPARK 230E with battery and transformer
for 230 V mains power supply.
Works up to 4 months in total absence of power supply.
- electronic programmer;
- built-in NOIRE EDGE FM400 receiver “433MHz”  ROLLING CODE;
- one S504 pre-coded two-channel transmitter;
- buffer batteries.

Compare
SKU: TE-DOMOPARK230E Categories: , ,

DOMOPARK230E – ELECTROMECHANICAL PARKING SAVER

DOMOPARK230E / DOMOPARK230 E – ELECTROMECHANICAL PARKING SAVER
Automatic parking safe DOMOPARK230 or DOMOPARK 230E with battery and transformer
for 230 V mains power supply.
Works up to 4 months in total absence of power supply.
– electronic programmer;
– built-in NOIRE EDGE FM400 receiver “433MHz”  ROLLING CODE;
– one S504 pre-coded two-channel transmitter;
– buffer batteries.

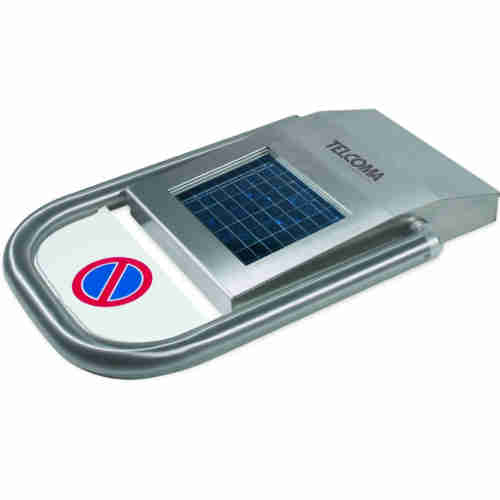

DOMOPARK 230E
Automatic parking saver DOMOPARK230 E with inbuilt control unit.
Ideal to preserve your own parking space against un authorized use.
The stainless steel structure makes it virtually indestructible. In case the curved arm is hit by a
vehicle, the spring system inside prevents damage and brings the arm back into position.
Safe and precise thanks to the encoder control. The DOMOPARK 230E PARKING SAFE it is also simple and easy to install.
After fixing it to the ground it does not require any setting.
The control unit is pre-programmed.
Practical, DOMOPARKE PARKING SAFE can be installed anywhere.
The in-built photovoltaic panel makes it suitable for use in any condition.

DOMOPARK 230E control unit

The control panel has an in-built state-of-the-art S504 radio receiver card with 128 bit cryptography,
“433MHz” FM ROLLING CODE and the possibility of memorising up to 1000 user codes.
Various solutions have been adopted in the PARKING SAFE systems in order
to guarantee the safety and security of people and materials.
foremost among which is the electronic sensor that inverts the movement of the arch whenever it
encounter an obstacle.
A mechanical shock absorbing device that reduces the effect of eventual crashes and bangs even when not in movement.

The device DOMOPARK parking protection safe, even easy, is fitted with a key-operated manual release mechanism.
Rapid installation:
– does not require particular tools;
– for standard operation it does not require programming and travel limit setting;
– the code of the radio control transmitter supplied with the device is already stored in the control panel.

TECHNICAL SPECIFICATIONS  DOMOPARK 230E DOMOPARK230 E
Motor power supply                                                    12 V
Max. motor current                                                     3 A
Motor power                                                               40 W
Opening time                                                              8 sec
Encoder                                                                      YES
Grease lubricant                                                          TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit
Model                                                                         D112
Power supply                                                              12 V
Max. current                                                               3 A

GENERAL DATA
Photovoltaic panel power                                              –
Battery charger to 230 V                                              included
Working temperature                                                    -20 +55 °C
Protection level                                                            IP 54
Weight                                                                        18,5 Kg
Pallet                                                                          12 pcs

ACCESSORIES

NOIREOC2
2 channels plug in receiver NOIREOC2 ROLLING CODE .

EDGEOC2
2 channels plug in receiver NOIREOC2 ROLLING CODE .

FM400OC2
2 channels plug in receiver NOIREOC2 ROLLING CODE .

SELF-POWERED ELECTROMECHANICAL PARKING PLACE PROTECTION

The PL (Parking Line) series consists of two parking space protection devices
PARKSUN and PARKLINE which stand out from other similar products for their
robustness and completely automatic electrical movement. Simple and practical
to operate thanks to the remote control included in the system, a stainless steel
arch rises up to prevent non authorised vehicles from using your personal parking
space.
Both models are powered by heavy duty, long-life buffer batteries. The PARKSUN
model does not require connection to external power sources as the batteries
are recharged by an in-built solar panel, while the PARKLINE model requires an
external battery charger powered by the mains. The PARKSUN-SR model is fitted
with a solar panel and a vehicle presence detector which will automatically raise
the arc when the vehicle leaves the parking place. The control panel has an in-built
state-of-the-art S504 radio receiver card with 128 bit cryptography, “433MHz”
FM ROLLING CODE and the possibility of memorising up to 1000 user codes.
Various solutions have been adopted in the PARKING LINE systems in order
to guarantee the safety and security of people and materials, foremost among
which is the electronic sensor that inverts the movement of the arch whenever it
encounter an obstacle and a mechanical shock absorbing device that reduces the
effect of eventual crashes and bangs even when not in movement. The device is
fitted with a key-operated manual release mechanism.
Rapid installation:
– does not require particular tools;
– for standard operation it does not require programming and travel limit setting;
– the code of the radio control transmitter supplied with the device is already
stored in the control panel.

Additional information

Weight 25 kg
Dimensions 1,00 × 0,70 × 0,40 m
