Industrial radio controls at both 433MHz and 868MHz. Long distance working

  • DKS1000 – KIT KEYPAD + ITERFACE 4CH

    DKS1000 – KEYBOARD + INTERFACE KIT

    DKS1000 – KEYBOARD + INTERFACE KIT consists of two products:
    DKS1000T – BACKLIT KEYBOARD
    DKS1000R – 4CH INTERFACE

    DKS1000T – KEYPAD WITH BACKLIGHTING
    Surface-mounting IP57.
    The metal antitamper keyboard DKS1000T has 12 keys, 10 numerical (0-9), one
    confirm key (*) and one cancel key (#) by means of which it is possible to program
    the backlighting and other operational parameters.
    DKS1000R – 4 CHANNEL INTERFACE
    The interface box is easy to install and has the following features:
    – power supply 12 or 24Vac-dc;
    – 4 normally open relays (one for each channel);
    – management of up to 3 peripheral devices (keypads and/or transponder readers;
    – 1 multifunction key for the following functions: storing a code, cancelling a code,
    cancelling the entire memory content, inserting an activation code for the “remote
    memorisation” function. It is possible to store 1000 codes in memory with
    a maximum of 6 digits for each code. Each code can activate up to 4 channels
    (different functions).

  • DKS1000R – INTERFACE 4CH

    DKS1000R – INTERFACE 4CH

    DKS1000R 4-CHANNEL INTERFACE
    The interface 4CH DKS1000R box is easy to install and has the following features:
    – power supply 12 or 24Vac-dc;
    – 4 normally open relays (one for each channel);
    – management of up to 3 peripheral devices (keypads and/or transponder readers;
    – 1 multifunction key for the following functions: storing a code, cancelling a code,
    cancelling the entire memory content, inserting an activation code for the “remote
    memorisation” function. It is possible to store 1000 codes in memory with
    a maximum of 6 digits for each code. Each code can activate up to 4 channels
    (different functions).

  • DKS1000T – KEYPAD WITH BACKLIGHTING

    DKS1000T – KEYPAD WITH BACKLIGHTING

    DKS1000T – KEYPAD WITH BACKLIGHTING
    Surface-mounting IP57.
    The metal antitamper keyboard DKS1000T has 12 keys, 10 numerical (0-9), one
    confirm key (*) and one cancel key (#) by means of which it is possible to program
    the backlighting and other operational parameters. It is suitable for connection with
    the DKS security system via a shielded unipolar wire carrying both the power supply
    and the data line. It is also fitted with auxiliary serial line allowing it to connect to the
    CARHF2 system (consult the Liberté catalogue).

  • DKSDUALT – KEYPAD WITH TRANSPONDER

    DKSDUALT – KEYPAD WITH TRANSPONDER

    DKSDUALT – KEYPAD WITH TRANSPONDER FUNCTION
    The DKSDUALT – KEYPAD WITH TRANSPONDER is Surface-mounting IP57.
    The DKSDUALT device has the following features:
    – 12 keys with backlighting;
    – backlighting controlled by the proximity sensor.
    Allows the interface to be activated by either typing in a code or by proximity
    reading an S500 transmitter, a TAG or a CARD.

  • DKSTP – KIT TRANSPONDER + INTERFACE

    DKS1000T – KEYPAD WITH BACKLIGHTING

    DKS1000T – KEYPAD WITH BACKLIGHTING
    Surface-mounting IP57.
    The metal antitamper keyboard DKS1000T has 12 keys, 10 numerical (0-9), one
    confirm key (*) and one cancel key (#) by means of which it is possible to program
    the backlighting and other operational parameters. It is suitable for connection with
    the DKS security system via a shielded unipolar wire carrying both the power supply
    and the data line. It is also fitted with auxiliary serial line allowing it to connect to the
    CARHF2 system (consult the Liberté catalogue).

  • DKSTPT – TRANSPONDER

    DKSTPT – TRANSPONDER READER

    DKSTPT – TRANSPONDER READER
    The DKSTPT transponder reader is Surface-mounting IP57.
    Using dip-switch settings it is possible to program the backlighting and other
    operational parameters. It is suitable for connection with the DKS security system
    via a shielded unipolar wire carrying both the power supply and the data line. Allows
    the interface to be activated by proximity reading an S500 transmitter, a TAG or a
    CARD. It is also fitted with auxiliary serial line allowing it to connect to the CARHF2
    system (consult the Liberté catalogue).

    DKSTPT – TRANSPONDER

    57,00 + TAX
  • INTBTC4 BLUETOOTH INTERFACE

    INTBTC4 – BLUETOOTH INTERFACE IN BOX (12 / 24Vac-dc).

    INTBTC4 – BLUETOOTH INTERFACE WITH FOUR RELAYS
    The interface with a Bluetooth module allows the control of four relays
    with NO or NC contacts. The selection dip-switches (one block per
    relay) allow you to select the relay’s activation method: impulsive, ON/
    OFF, timer controlled or remotely controlled relay activation using the
    programming calender in the Cardin multiprotocol interface Cardin
    RCQ504/508W00. The programming buttons (one per relay) allow
    you to set the activation times for the relays (from 1 s to 5 min) for
    the timer controlled mode.
    The Bluetooth module MODBT is to be ordered separately.
    Power supply 12/24Vac-dc.
    Electrical input 50mA.
    Overall dimensions 95 x 75 x 25.
    Indoor box IP20

  • RCQ433-3G10

    RCQ868-3G10 – 433MHz RECEIVER WITH LCD DISPLAY AND 2G – 3G + SIM VODAFONE FOR 10 YEARS

    RCQ433-3G10 – 433MHz RECEIVER WITH LCD DISPLAY AND 2G – 3G FUNCTIONS (12/24Vac-dc) + SIM VODAFONE FOR 10 YEARS
    The RCQ433-3G10 receivers  can be fitted with up to four programmable relay
    modules MCCMORPHM1 (impulsive, ON-OFF or timer controlled).
    1 relay inserted.
    Possibility of memorising up to 3000 codes.
    USB connection and 2G-3G-WiFi module for remote user and
    activation of the output relays.
    The RCQ433/868-3G10 receivers include a 10 year subscription
    with our partner Vodafone.

    All weather box in ABS – IP55.
    Overall dimensions 135 x 175 x 85.

    RCQ433-3G10

    378,00 + TAX
  • RCQ508W00 MULTIPROTOCOL INTERFACE

    RCQ504NC1 – 433MHz MODULAR RECEIVER IN BOX (12 / 24Vac-dc).

    RCQ504NC1 – 433MHz MODULAR STANDARD OUTDOOR RECEIVER IN BOX (12 / 24Vac-dc).
    The unit RCQ504NC1 receiver can be fitted with up to four interchangeable relay modules
    MCCMORPHM1, which can be set to ON/OFF or impulsive.
    1 relay inserted.
    Possibility of memorising up to 1000 codes.

    ABS outdoor enclosure – IP55.
    Overall dimensions(mm) 148 x 118 x 40.

  • RPQ508IT0 RADIO PROGRAMMER ON/OFF

    RPQ508IT0 – 868MHz RADIO PROGRAMMER ON/OFF + TIMER (230V-2000W)

    RPQ508IT0 – 868MHz RADIO PROGRAMMER ON/OFF + TIMER (2000W)
    For specific uses such as the remote control of external (gardens) and
    internal lighting; the remote control of power sockets. Connecting the
    radioprogrammer to a light detection device will prevent it from switching
    on the lighting system during the daytime.Possibility of memorising up to
    1000 user codes. Timer settings: from 1 min. to 23 hrs. 59 min.
    All weather box in ABS – IP55.
    Overall dimensions 139 x 115 x 44.

  • SAFEKITCDR8 – KIT STATIONARY UNIT + PAIR PHOTOCELLS

    SAFEKITCDR8 – KIT STATIONARY UNIT + WIRELESS PHOTOCELLS RADIO 868MHz

    SAFEKITCDR8 – KIT PAIR OF PHOTOCELLS WIRELESS RADIO + STATIONARY TRANSCEIVER UNIT INTERFACE 433MHz
    SAFECDR8 – PAIR OF PHOTOCELLS RADIO ( WIRELESS PHOTOELECTRIC CELLS)
    SAFEDECX8 – STATIONARY TRANSCEIVER UNIT
    ROLLING CODE FM RADIO system. transmission frequency: 433MHz

    SAFECDR8 – PAIR OF PHOTOCELLS RADIO ( WIRELESS PHOTOELECTRIC CELLS)
    3V lithium battery power supply.
    Maximum radio signal range 30m.
    Maximum infrared range 10m.
    Transmitter and receiver housed in shockproof and waterproof
    cases IP65.

    SAFEDECX8 – STATIONARY TRANSCEIVER UNIT
    Power supply 12/24Vac-dc.
    Maximum radio signal range 30m.
    8 safety devices.
    3 safety outputs NC/8.2kΩ.
    Shockproof case IP65.

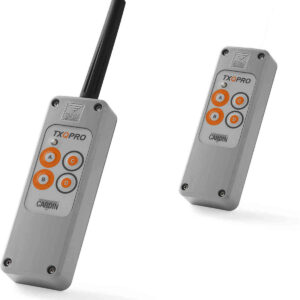

  • TXQPRO504-4

    TXQPRO504-4  INDUSTRIAL ROLLING CODE TRANSMITTER / REMOTE CONTROL

    TXQPRO504-4 INDUSTRIAL TRANSMITTER S504, FM DIGITAL REMOTE CONTROL WITH ROLLING CODES – EXTERNAL ANTENNA
    4-function pre-coded remote control transmitter (433MHz)

    Container in shockproof, water-proof material IP65.
    Power supply 6V with lithium batteries 2 x CR123A.
    Overall dimensions 50 x 145 x 26.

    TXQPRO504-4

    61,00 + TAX
