• HL2518CL

    HL2518CL – UNDERGROUND ELECTROMECHANICAL MOTOR 230V WITH 180°- 360° OPENING ANGLE

    HL2518CL UNDERGROUND MOTOR WITH ENCODER 230V
    SWING GATES MAX WEIGHT.
    550KG – 180° – 360° OPENING ANGLE

    HL2518CL – MOTOR IN PHASE OUT
    SUBSTITUTE BY MOTOR : HLXCORE230



    ELECTROMECHANICAL OPERATOR HL25118CL
    – 230V MOTOR FOR GATES

    – 180° – 360°  MAXIMUM OPENING ANGLE
    – GATE MAX 3M
    – GATE MAX 5050KG
    Self-locking operator:
    – fitted with a crank rod transmission system;
    – supplied with a 6m connection cable;
    – embedding case and Cardin electronic programmer to be ordered separately.

  • KT-HL2524PSB

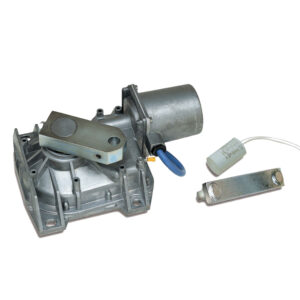

    KT-HL2524PSB – COMPLETE UNDERGROUND AUTOMATION KIT FOR SWING GATES

    KT-HL2524PSB  : COMPLETE UNDERGROUND AUTOMATION KIT FOR SWING GATES ENCODER 24V PESO MAX. 350KG

    KT-HL2524PSB – MOTOR IN PHASE OUT
    REPLACED BY KIT : KT-HLXCORE24T



    USE of KT-HL2524PSB KIT
    Particularly suited for installation that do not allow column installations or where
    the automation has to be completely hidden. For gates with a maximum length
    of 3m, maximum weight 350kg.

    HL2524ESB : 2 SELF-LOCKING ELECTROMECHANICAL UNDERGROUND GEARED MOTORS
    with an encoder-controlled 24V motor.

    HLBOXC : 2 EMBEDDING CASES
    with stainless steel covers, connection levers and release mechanism with a
    personalised key.

    CC242EXTOPCB : ELECTRONIC PROGRAMMER
    with a 433MHz FM receiver, battery charger and NiMH batteries, housed
    in an IP55 box with sealing gaskets and cable gland entry holes for the
    insertion of one Ø21 mm and two Ø16mm rigid tubes.

    TXQ504C4 : 2 4-CHANNEL TRANSMITTERS
    433MHz FM ROLLING CODE.
    ICON : LED WARNING LIGHT
    24V – 230V with an in-built aerial
    CDR999 : PAIR OF PHOTOCELLS
    in class 3 with adjustable lens, range 10m.
    CABPC10 : 10-METRE WIRING CABLE
    with end sleeves.
    TARGA-INT : INTERNATIONAL WARNING SIGN
    in PP, multi-language.

  • KT-HL251KS9

    KT-HL251KS9- COMPLETE UNDERGROUND AUTOMATION HL251CL KIT FOR SWING GATES

    KT-HL251KS9 KIT  : COMPLETE UNDERGROUND AUTOMATION KIT FOR SWING GATES ENCODER 230V PESO MAX. 350KG

    KT-HL251KS9 – MOTOR IN PHASE OUT
    REPLACED BY KIT : KT-HLXCORE230T



    USE of KT-HL251KS9 KIT
    Particularly suited for installation that do not allow column installations or where
    the automation has to be completely hidden. For gates with a maximum length
    of 3m, maximum weight 350kg.

    HL251CL : 2 SELF-LOCKING ELECTROMECHANICAL UNDERGROUND GEARED MOTORS
    with an encoder-controlled 230V motor.

    HLBOXC : 2 EMBEDDING CASES
    with stainless steel covers, connection levers and release mechanism with a
    personalised key.

    CC242EXTOPCB : ELECTRONIC PROGRAMMER
    with a 433MHz FM receiver, battery charger and NiMH batteries, housed
    in an IP55 box with sealing gaskets and cable gland entry holes for the
    insertion of one Ø21 mm and two Ø16mm rigid tubes.

    TXQ504C4 : 2 4-CHANNEL TRANSMITTERS
    433MHz FM ROLLING CODE.
    ICON : LED WARNING LIGHT
    24V – 230V with an in-built aerial
    CDR999 : PAIR OF PHOTOCELLS
    in class 3 with adjustable lens, range 10m.
    CABPC10 : 10-METRE WIRING CABLE
    with end sleeves.
    TARGA-INT : INTERNATIONAL WARNING SIGN
    in PP, multi-language.

  • HL251CL

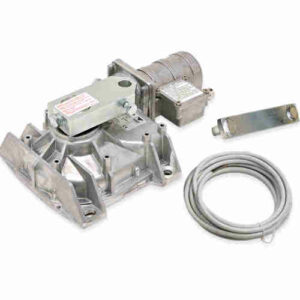

    HL251CL – UNDERGROUND ELECTROMECHANICAL MOTOR 230V

    HL251CL SELF-LOCKING UNDERGROUND MOTOR WITH ENCODER 230V
    SWING GATES MAX WEIGHT.
    550KG

    HL251CL – SELF-LOCKING MOTOR IN PHASE OUT
    REPLACED BY NEW MODEL : HLXCORE230 MOTOR

    ELECTROMECHANICAL OPERATOR HL251CL
    – 230V MOTOR FOR GATES

    – 110° MAXIMUM OPENING ANGLE
    – GATE MAX 3M
    – GATE MAX 5050KG
    Self-locking operator:
    – fitted with a crank rod transmission system;
    – supplied with a 6m connection cable;
    – embedding case and Cardin electronic programmer to be ordered separately.

  • HL1824ESB

    HL1824ESB – UNDERGROUND ELECTROMECHANICAL MOTOR 24V WITH 180°- 360° OPENING ANGLE

    HL1824ESB – SELF-LOCKING MOTOR IN PHASE OUT
    REPLACED BY NEW MOTOR : HLXCORE24 MOTOR



    HL1824ESB- SELF-LOCKING MOTOR WITH ENCODER 230V MAX WEIGHT. 550KG – 180° – 360° OPENING ANGLE

    ELECTROMECHANICAL OPERATOR HL1824ESB
    – 230V MOTOR FOR GATES

    – 180° – 360°  MAXIMUM OPENING ANGLE
    – GATE MAX 3M
    – GATE MAX 5050KG
    Self-locking operator:
    – fitted with a crank rod transmission system;
    – supplied with a 6m connection cable;
    – embedding case and Cardin electronic programmer to be ordered separately.

  • HL2524ESB

    HL2524ESB – UNDERGROUND ELECTROMECHANICAL MOTOR 24V

    HL2524ESB SELF-LOCKING UNDERGROUND MOTOR WITH ENCODER 24V
    SWING GATES MAX WEIGHT.
    350KG

    HL2524ESB – SELF-LOCKING MOTOR IN PHASE OUT
    REPLACED BY NEW MOTOR : HLXCORE24 MOTOR

    ELECTROMECHANICAL OPERATOR HL1824ESB
    – 24V MOTOR FOR GATES

    – 110°  MAXIMUM OPENING ANGLE
    – GATE MAX 3M
    – GATE MAX 5050KG
    Self-locking operator:
    – fitted with a crank rod transmission system;
    – supplied with a 6m connection cable;
    – embedding case and Cardin electronic programmer to be ordered separately.

  • HLMOLE24

    HLMOLE24 : UNDERGROUND GEAR MOTOR 24V

    HLMOLE24 – SELF-LOCKING MOTOR IN PHASE OUT
    REPLACED BY NEW MOTOR : HLXCORE24 MOTOR



    HLMOLE24 / HL MOLE24 ELECTROMECHANICAL UNDERGROUND OPERATOR WITH A 24V  3M
    MOTOR FOR GATES WITH A 105° MAXIMUM OPENING ANGLE
    Encoder controlled self-locking operator:
    – fitted with a crank rod transmission system;
    – supplied with a 2m connection cable;
    – embedding case and Cardin electronic programmer to be ordered separately.

    HL MOLE 24
    24 V underground electromechanical gearmotor for leaves up to 3 m.
    It replaces the old model TELCOMA ROCK

  • HLMOLE230

    HLMOLE230 : UNDERGROUND GEAR MOTOR 230V

    HLMOLE230 – SELF-LOCKING MOTOR IN PHASE OUT
    REPLACED BY NEW MODEL : HLXCORE230 MOTOR



    HLMOLE230 / HL MOLE230 ELECTROMECHANICAL UNDERGROUND OPERATOR WITH A 230V  3M
    MOTOR FOR GATES WITH A 105° MAXIMUM OPENING ANGLE
    Encoder controlled self-locking operator:
    – fitted with a crank rod transmission system;
    – supplied with a 3m connection cable;
    – embedding case and Cardin electronic programmer to be ordered separately.

    HL MOLE 230
    230V underground electromechanical gearmotor for leaves up to 3 m.
    It replaces the old model TELCOMA ROCK

  • KT-BLASY324

    KT-BLASY324 – KIT ELECTROMECHANICAL RAM 24V IRREVERSIBLE
    KT-BL ASY324 – IS IN PHASE OUT
    KT-BLADE324 – KIT ELECTROMECHANICAL RAM 24V IRREVERSIBLE NEW KIT REPLACING THE KT-BL EASY324

    KT-BLASY324 / KT-BL ASY324 – KIT COMPLETE ELECTROMECHANICAL RAM WITH A 24V MOTOR 3M
    Self-locking encoder-controlled ram with mechanical travel limits. The
    geared motor locks the gate leaf in the closed position.
    Supplied with all the fittings necessary for mounting one ram including
    the front and rear brackets in galvanised steel.
    ECU to be ordered separately T624.

    KT-BLASY324 USING
    Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
    max. weight 250kg.

    KT-BLASY324 KIT COMPLETE OF :

    2 BL ASY324324 :  SELF-LOCKING ELECTROMECHANICAL RAMS
    with a 24V encoder-controlled motor and mechanical travel limits.

    TARGA-INT : INTERNATIONAL WARNING SIGN
    in PP, multi-language.

    ICON : LED WARNING LIGHT
    24V – 230V with an in-built aerial

    2 TXQ504C4 : 4-CHANNEL TRANSMITTERS
    433MHz FM ROLLING CODE.

    T624 : ELECTRONIC PROGRAMMER
    for two 24V encoder-controlled motors complete with speed regulation and
    deceleration.

    VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
    with adjustable lens, range 25m.

    RSQ504OC2 : 2-CHANNEL RECEIVER CARD
    433MHz open collector, slot-in card.
    S504 – S508 – S486 – FM – EDGE and NOIRE versions are available on request.

  • KT-BL ASY3

    KT-BL ASY3 – ELECTROMECHANICAL RAM 230V IRREVERSIBLE
    KT-BLASY3 – IS IN PHASE OUT
    KT-BLADE3 – ELECTROMECHANICAL RAM 230V IRREVERSIBLE NEW KIT REPLACING THE KT-BL EASY3

    KT-BLASY3 – ELECTROMECHANICAL RAM ASY3 WITH A 230V MOTOR 3M
    Self-locking encoder-controlled ram with mechanical travel limits. The
    geared motor locks the gate leaf in the closed position.
    Supplied with all the fittings necessary for mounting one ram including
    the front and rear brackets in galvanised steel.
    ECU to be ordered separately T600.

    BL ASY3
    Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
    max. weight 250kg.

    KT-BLASY3 USING
    Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
    max. weight 250kg.

    KT-BLASY3 KIT COMPLETE OF :

    2 BL ASY3 :  SELF-LOCKING ELECTROMECHANICAL RAMS
    with a 24V encoder-controlled motor and mechanical travel limits.

    TARGA-INT : INTERNATIONAL WARNING SIGN
    in PP, multi-language.

    ICON : LED WARNING LIGHT
    24V – 230V with an in-built aerial

    2 TXQ504C4 : 4-CHANNEL TRANSMITTERS
    433MHz FM ROLLING CODE.

    T624 : ELECTRONIC PROGRAMMER
    for two 24V encoder-controlled motors complete with speed regulation and
    deceleration.

    VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
    with adjustable lens, range 25m.

    RSQ504OC2 : 2-CHANNEL RECEIVER CARD
    433MHz open collector, slot-in card.
    S504 – S508 – S486 – FM – EDGE and NOIRE versions are available on request.

  • BL ASY524REV

    BL ASY524REV – ELECTROMECHANICAL RAM 24V REVERSIBLE
    BL ASY524REV– IS IN PHASE OUT
    BLADE524REV – ELECTROMECHANICAL RAM 24V REVERSIBLE NEW MOTOR REPLACING THE BL EASY524

    BL ASY524REV – ELECTROMECHANICAL RAM WITH A 24V MOTOR 5M
    Self-locking encoder-controlled ram with mechanical travel limits. The
    geared motor locks the gate leaf in the closed position.
    Supplied with all the fittings necessary for mounting one ram including
    the front and rear brackets in galvanised steel.
    ECU to be ordered separately T624.

    BL ASY524REV
    Standard version elettromeccanical RAM 24V REVERSIBLE for gates max. length 5m,
    max. weight 250kg.

  • BL ASY524

    BL ASY524 – ELECTROMECHANICAL RAM 24V IRREVERSIBLE
    BL ASY524 – IS IN PHASE OUT
    BLADE524 – ELECTROMECHANICAL RAM 24V IRREVERSIBLE NEW MOTOR REPLACING THE BL EASY524

    BL ASY524 – ELECTROMECHANICAL RAM WITH A 24V MOTOR 5M
    Self-locking encoder-controlled ram with mechanical travel limits. The
    geared motor locks the gate leaf in the closed position.
    Supplied with all the fittings necessary for mounting one ram including
    the front and rear brackets in galvanised steel.
    ECU to be ordered separately T624.

    BL ASY524
    Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 5m,
    max. weight 250kg.
