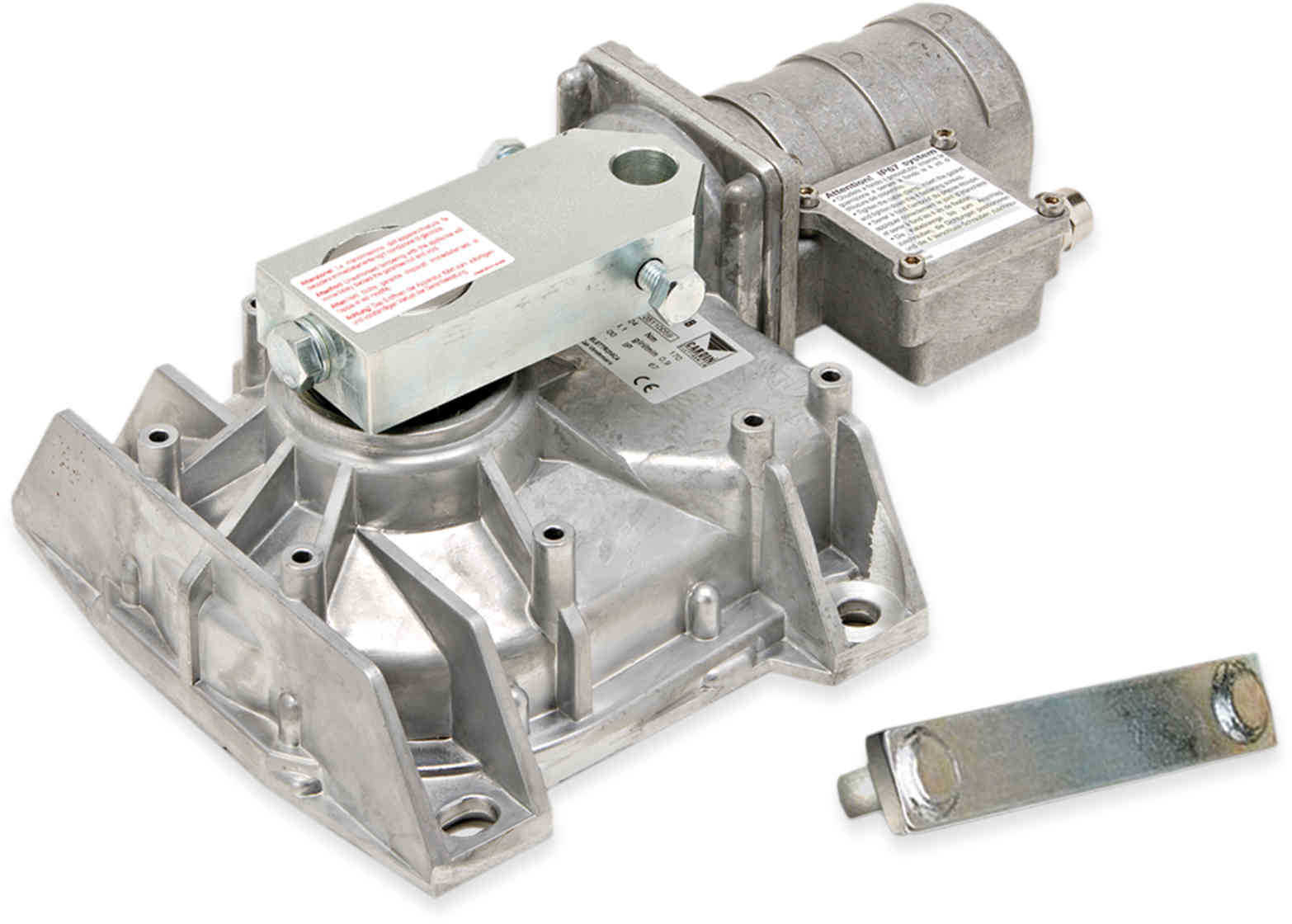

HL2524ESB - UNDERGROUND ELECTROMECHANICAL MOTOR 24V

HL2524ESB - SELF-LOCKING UNDERGROUND MOTOR WITH ENCODER 24V
SWING GATES MAX WEIGHT.
350KG

HL2524ESB - SELF-LOCKING MOTOR IN PHASE OUT
REPLACED BY NEW MOTOR : HLXCORE24 MOTOR

ELECTROMECHANICAL OPERATOR HL1824ESB
- 24V MOTOR FOR GATES

- 110°  MAXIMUM OPENING ANGLE
- GATE MAX 3M
- GATE MAX 5050KG
Self-locking operator:
- fitted with a crank rod transmission system;
- supplied with a 6m connection cable;
- embedding case and Cardin electronic programmer to be ordered separately.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare

HL2524ESB – UNDERGROUND ELECTROMECHANICAL MOTOR 24V

HL2524ESB SELF-LOCKING UNDERGROUND MOTOR WITH ENCODER 24V
SWING GATES MAX WEIGHT.
350KG

HL2524ESB – SELF-LOCKING MOTOR IN PHASE OUT
REPLACED BY NEW MOTOR : HLXCORE24 MOTOR

HL2524ESB- SELF-LOCKING MOTOR WITH ENCODER 24V
SWING GATES MAX WEIGHT.
550KG AND 3M
ELECTROMECHANICAL OPERATOR HL1824ESB
– 24V MOTOR FOR GATES

– 110°  MAXIMUM OPENING ANGLE
– GATE MAX 3M
– GATE MAX 550KG
Self-locking operator:
– fitted with a crank rod transmission system;
– supplied with a 6m connection cable;
– embedding case and Cardin electronic programmer to be ordered separately.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

HL2524ESB  – UNDERGROUND ELECTROMECHANICAL MOTOR 24V

The automation is made up of a series of components consisting of an electronic
programmer, one or two sealed self-locking operators complete with embedding
cases and a special connecting cable. The robust and reliable electromechanical
operator guarantees optimum performance under all working conditions and its
system of ball bearing balanced pivoting levers guarantees regular and silent
running.

The hot dip galvanized or stainless steel embedding cases are guaranteed to
remain rust free throughout time.
Particularly suited for installations that do not allow column installations or where
the automation has to be completely hidden.
The units do not feature on board electronics and we advise you to use a Cardin
electronic programmer:
– PRG230M2 for 1 or 2 230V motors;
– CC242ETOPCB – CC242EXTOPCB for 1 or 2 24V motors;

On the 24V model gate position is encoder controlled and self-programming
thus reducing installation times to a minimum and optimising the programming
procedure. Repositioning takes place automatically whenever foreign objects get
in the way of the gate as it is moving.

The electronic control unit is completed by the anti-crush and “soft start” and “soft
stop” functions. The control electronics also comes complete with a display that
monitors the programming stages and counts the number of manoeuvres carried
out by the machine.

The irreversible reduction system guarantees the blocking of the gates in the closed
position.
The manual emergency movement system is easy to operate using a personalised
“locking-unlocking” key and rearming is automatic.

CC242ETOP SELF-PROGRAMMING ECU FOR HL2524ESB- HL1824ESB

Programmer for the control of two encoder controlled 24V motors.
Fitted with a multi-decoding module S449-S486-S504-S508.
Compatible with the INTPRG-3G/WF system that allows the monitoring
and programming of system parameters from remote positions.

TECHNICAL FEATURES OF THE UNDERGROUND ACTUATOR HL2524ESB

Motor power supply                                          V 24VDc
Electrical input                                                 A 2
Power input                                                     W 60
Duty cycle                                                        % 70
Opening time 90°                                              s 22
Opening time 110°                                              s 27
Openin    g time 140°                                          s 35
Opening time 180°                                              s 44
Maximum torque                                                Nm 170
Protection grade                                                 IP 67

CC242ETOP : SELF-PROGRAMMABLE ELECTRONIC PROGRAMMER

T600 : SELF-PROGRAMMABLE ELECTRONIC PROGRAMMER

CC242ETOPCB    : ECU, BATTERY CHARGER AND NiMH BATTERIES
CC242EXTOPCB : ECU, BATTERY CHARGER AND NiMH BATTERIES
KBNIMH-1           : KIT BATTERY CHARGER + NIMH BATTERIES
Allows the CC242ETOP unit to work during blackouts

CABPC10 : 10m CABLE
with end sleeves for HL2524ESB – HL1824ESB.

EMBEDDING CASES HL2524ESB MOTOR
complete with connection lever and adjustable mechanical travel limits.
All versions are fitted with a stainless steel cover.
HLBOX – Hot dip galvanized anti-rust treatment, manual release mechanism
to be ordered separately.
HLBOXI – Structure completely in stainless steel, manual release mechanism
to be ordered separately.
HLBOXC – Hot dip galvanized anti-rust treatment, release mechanism with a
personalised key included in the embedding case lever unit (not compatible
with ACCHL360).

SBLHL : MANUAL RELEASE MECHANISM
with a personalised key for HLBOX-HLBOXI

SBLSHL : MANUAL RELEASE MECHANISM
activated by means of a lever for HLBOX-HLBOXI

ACCHL360 : ACCESSORY FOR 360° OPENING

Additional information

Weight 15 kg
Dimensions 0,50 × 0,40 × 0,40 m
