BLTOW24S

In stock

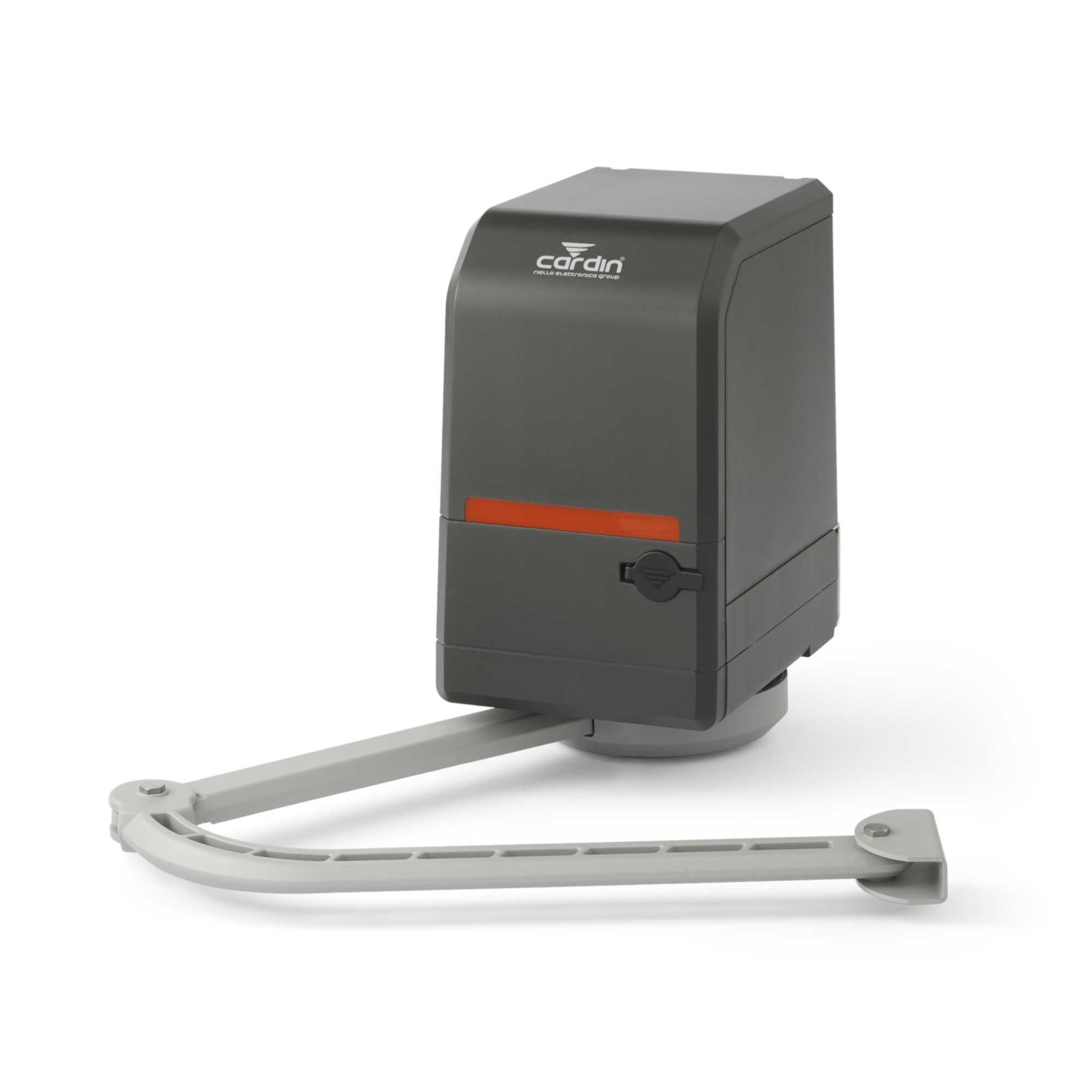

BLTOW24S SLAVE- ELECTROMECHANICAL GROUP WITH 24V MOTOR

BLTOW24S MOTOR IN PHASE OUT -
REPLACED WITH MOTOR : BLGRIFFE24S

BLTOW24S SLAVE - SELF-LOCKING GROUP WITH ENCODER 24V MAX. 200KG

BLTOW24S SLAVE Encoder-controlled self-locking Slave unit for swing gate with hinged arms including:
- electronic programmer;
- 433MHz FM receiver;
- gate movement signalling via led (optional).
Kit battery charger + batteries to be ordered separately.
Particularly suited for installations with narrow columns that require
the mounting base to be less than 180mm in width and also for
gates where the hinges are not aligned to the edge of the column
and with gate leaves of up to 2 metres in length (2,5m with an
electric lock), 200kg maximum weight.
Manual release is carried out using a practical locking - unlocking
lever protected by a security key.
Operator arm included.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-BLTOW24S Categories: , , ,

BLTOW24S SLAVE- ELECTROMECHANICAL GROUP WITH 24V MOTOR

BLTOW24S MOTOR IN PHASE OUT –
REPLACED WITH MOTOR : BLGRIFFE24S

BLTOW24S SLAVE SELF-LOCKING GROUP WITH ENCODER 24V MAX. 200KG
BLTOW24S SLAVE Encoder-controlled self-locking Slave unit for swing gate with hinged arm including:
– electronic programmer;
– 433MHz FM receiver;
– gate movement signalling via led (optional).
Kit battery charger + batteries to be ordered separately.
Particularly suited for installations with narrow columns that require
the mounting base to be less than 180mm in width and also for
gates where the hinges are not aligned to the edge of the column
and with gate leaves of up to 2 metres in length (2,5m with an
electric lock), 200kg maximum weight.
Manual release is carried out using a practical locking – unlocking
lever protected by a security key.
Operator arm included.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

BLTOW24S SLAVE – ELECTROMECHANICAL UNIT WITH 24V MOTOR

BLTOW24S SLAVE  a complete automatic device for swing gate with one or two gate leaves, the system is made up of a Master unit and a Slave unit powering the second hinged gate.

Installation is facilitated and the geared motor is well anchored by the special practical cast
aluminium wall (or column) bracket predisposed for any type of fastening.
The compact and robust fastening bracket allows the automation to be fitted to very narrow
columns of any swing gate. The extremely robust cast aluminium operator hinged arm are fitted with joints for all
applications and are able to drive hinged gates with different constructive characteristics.

The electronic programmer of BLTOW24S SLAVE is factory fitted with a graphic LCD display (128 x 128 pixels)
with backlighting in six different languages.
The menu allows you to rapidly set the system parameters including:
the sequential button mode, automatic reclosing, warning lamp preflashing,
intermittent warning lamp activation, indicator light and photoelectric cell
function setting etc.

Control units with LC

The electronics card, thanks to the presence of the real-time
clock, allows you to set 10 events (shown on the display).
These events permit you to regulate the opening and closing of the motor at different times during the
day within 3 weekly time bands (Mon-Fri, Sat-Sun, Mon-Sun).
The events can be enabled or disabled (during holiday periods) either from the menu or by means of a radio
channel.

Repositioning takes place automatically whenever foreign objects get in the way of
the gate as it is moving. The electronic control unit of BLTOW24S SLAVE is completed by the anti-crush and “soft start” and “soft stop” functions.
Compatible with the INTPRG-3G/WF system that allows the monitoring and programming of
system parameters from remote positions.
Multi-decoding:
The product range is factory fitted with a multi-decoding remote control module (system
S449 – S486 – S504 – S508).

OPERATOR ARM TECHNICAL SPECIFICATIONS BLTOW24S SLAVE

BLTOW24S SLAVE     Motor power supply       Vdc           24
Nominal electrical input                                 A              3
Power input                                                  W             50
Duty cycle                                                     %            70
Opening time 90°                                           s             13
Maximum opening angle                                  °             120
Maximum torque                                            Nm          250
Protection grade                                             IP            54
* using a straight operator arm

ELECTRONIC PROGRAMMER TECHNICAL DATA

Power supply                                            Vac 230
Nominal electrical input                             A 1,2
Maximum power yield                                W 250
Power output for 1 or 2 motors                   W 60 + 60
Class II device Cls

BUILT IN RECEIVER CARD

Reception frequency                                       MHz 433.92 / 868,3
Number of channels / number of functions       No 4 / 8
Number of stored codes                                  No 300 / 1000

ACCESSORIES BLTOW24S SLAVE

BLT24ARM : STANDARD HINGED OPERATOR ARM
in spray-painted cast aluminium.

BLTS24DRM: STRAIGHT ARM WITH SLIDING GUIDE
in spray-painted cast aluminium.

KBNIMH-1 : KIT BATTERY CHARGER + NIMH BATTERIES
Allows the BLTOW24M unit to work during blackouts.

CABPC10 : 10m CABLE
with end sleeves.

LED BLTOW : LED LIGHTS
Gate movement signalling indicated by leds FOR BLTOW24M SLAVE and MASTER

Additional information

Weight 10 kg
Dimensions 0,60 × 0,40 × 0,40 m
