VEDO180PRO

VEDO180PRO PHOTOCELL

VEDO180PRO PHOTOCELL

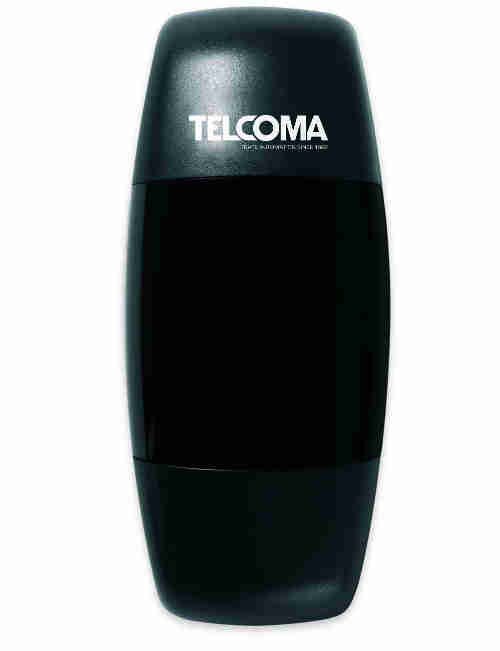

Photocell VEDO180 PRO programmable infrared photocell. Ideal for complex installations, up to 8 couples of photocells thanks to
new synchronised system. Infrared beam could be regulated horizontally over 180°.
The particular selfcentering lent corrects mistakes also vertically. Supply can be at 24V alternating voltage
or continue, without polarity refer.
Range 25m.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

CHARACTERISTICS VEDO180PRO
Power supply                                                  12/24 +/- 10% Vac/dc
Range                                                            25m
RX consumption (a 24 Vac)                              50mA
TX consumption (a 24 Vac)                              20mA
Max. relay voltage                                          30Vdc
Working temperature                                      -20 +55°
Protection level                                               IP44
Dimensions                                                     102x43x34 mm

INFRARED BARRIERS WITH ADJUSTABLE LENSES

POWER SUPPLY 12/24Vac-dc
RANGE 15m – 60m
SENSITIVITY ADJUSTMENT CDR851 – CDR852A
SHIELDED LENSES – GREATER IMMUNITY TO INTERFERENCE
Modulated infrared barrier consisting of a transmitter and a receiver.
It constitutes an efficient safety system for the protection of passageways or
spaces which are equipped with automatic doors or gates.
A shockproof designer case, pleasing on the eye, encloses innovative technical
solutions which make the system extremely reliable under all working conditions.
The vast range of available models meets all possible system requirements.
Technical description
Anti-tamper aluminium case IP66 CDR842A – CDR852A
Shockproof case IP55 CDR841 – CDR851
Self locking adjustable lens which can be rotated horizontally through plus or
minus 90° (± 45° for the CDR841I) and vertically through plus or minus 30° with
respect to the standard installation position.
These adjustments permit lateral fitting and installations where the transmitter and
receiver are at different heights.
Double-relay with serial exchange on the receivers as requested by the standards
regarding protection against accidents for motorized gates and doors.
2 indicator LEDs:
– red – indicating that the transmitter is receiving power;
– red – (photocells out of alignment or the beam is interrupted) in the receiver.
Test point (for fine tuning) on the receiver.
Sensitivity adjustment trimmer on models CDR851 – CDR852A.

ACCESSORIES VEDO180PRO

BLINDO
Copertura murale per il fissaggio della serie selettoreAPRO/VEDO/PASSO su un’installazione pre-esistente.
Conf. da 2 pz.

COP
Wall cover for fixing the APRO / VEDO180 PRO / PASSO selector series to a pre-existing installation.
Pack of 2 pcs.

SEL50
Column in anodized aluminum 55 cm high, one module for the selector devices APRO / VEDO and PASSO.
Pack of 2 pcs.
SEL120
Column in anodized aluminum 120 cm high, one module for the selector devices APRO / VEDO180PRO and PASSO.
SEL120D
Column in anodized aluminum 120 cm high, two modules for the selector devices APRO / VEDO180 PRO and PASSO
