RCQ508NC1

64,00 + TAX

In stock

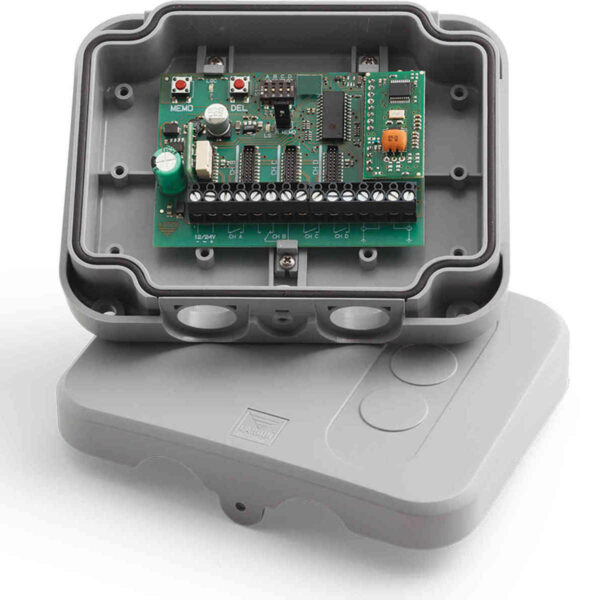

RCQ508NC1 - 868MHz MODULAR RECEIVER IN BOX (12 / 24Vac-dc).

RCQ508NC1 - 868MHz MODULAR STANDARD OUTDOOR RECEIVER IN BOX (12 / 24Vac-dc).
The unit RCQ508NC1 receiver or receivers can be fitted with up to four interchangeable relay modules
MCCMORPHM1, which can be set to ON/OFF or impulsive.
1 relay inserted.
Possibility of memorising up to 1000 codes.

ABS outdoor enclosure - IP55.
Overall dimensions(mm) 148 x 118 x 40.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare

RCQ508NC1 – 868MHz MODULAR RECEIVER IN BOX (12 / 24Vac-dc).

RCQ508NC1 – 868MHz MODULAR STANDARD OUTDOOR RECEIVER IN BOX (12 / 24Vac-dc).
The unit RCQ508NC1 receiver or receivers can be fitted with up to four interchangeable relay modules
MCCMORPHM1, which can be set to ON/OFF or impulsive.
1 relay inserted.
Possibility of memorising up to 1000 codes.

ABS outdoor enclosure – IP55.
Overall dimensions(mm) 148 x 118 x 40.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

RECEIVERS

The receivers are available in all the classic Cardin versions: outdoor receivers 12-
24V with display, with LCD display and 3G/WiFi functions, 230V radio programmers
in watertight cases with flip up access covers, mini receiver units to be installed in
appliances which already have a protective casing and slot-in receiver cards for direct
insertion into host appliances designed to receive them:
– outdoor receiver with a multi-decoding module S449 – S486 – S504 – S508,
LCD display and 3G-WiFi functions;
– standard outdoor receivers;
– outdoor receivers with display;
– 2-channel mini receivers, slot-in receiver cards;
– 2-channel open collector receiver cards;
– outdoor radio programmers;
– multiprotocol interface.

RECEIVERS WITH LCD DISPLAY AND 3G/WiFi FUNCTIONS

Thanks to the inbuilt 2G-3G or WiFi module, avant-garde software and a highly
efficient signal reception apparatus the receivers allows the remote management
(without range limits) of all installations that require remote control via radio (automatic
entry systems, access control, car-parks etc.).

The appliance is ideally suited to multi-user installations (up to 3000 transmitters can be memorised)
and ones that require frequent upgrading and modification of the codes.
The USB connection, the programming and setting buttons and the efficient display allow the appliance to
be easily configured.
The installation management functions are: transmitter code memorization/
cancellation and programming the function mode for each single output.
The RCQ508NC1 receiver can manage up to four programmable channel modules (impulsive/
ON-OFF/timer controlled, NO/NC contact type and power on reset).

Technical description of the receiver

The RCQ508NC1 receiver also features a Real Time Clock which can be used to set the time bands during
which the outputs are active.
It also features, the RCQ508NC1 receiver, as well as a non volatile memory module which can
store up to 100000 relay activation events which may be downloaded during a normal connection and consulted at will.

CARDINTX_SW

The CARDINTX_SW software that can be downloaded from the website www.cardin.
It allows the stored user codes to be managed by means of one of three possible connection methods: direct via USB
cable, using the mobile communications network with a 2G/3G module or using a
WF module.

One or more outputs can be remotely activated over the phone or via
SMS with an installed 2G/3G module or using an App.

Four independent inputs are also available which can be used to monitor external
appliances the status of which can be obtained from the receiver via SMS or an App.
Using the Cardin software it is possible to set the RCQ508NC1 receiver ’s 4 inputs according
to the requirements of the installation.
As soon as an event such as resetting the position status of the door, security devices intervening, presence/absence of power
etc. is detected, the receiver will send a personalised message to the pre-registered
e-mail addresses.
Thanks to this system the 3G receiver becomes a very useful maintenance management tool.

ACCESSORIES RCQ508NC1 RECEIVER

MCCMORPHM1  : STRIP WITH 1 PROGRAMMABLE RELAY (S504 – S508)
The relay can be set on the RCQ508NC1 receiver to one of the functions.

CODE MEMORY MODULES
Extractable and furnished with non volatile memory, this EEPROM
contains the system code
MCC24LC64 : 1000-CODE MEMORY MODULE
(RECEIVERS S504D1-S508D1) VERTICAL
ZGB24LC64-I/P : 1000-CODE MEMORY MODULE (S504 – S508)

RSQSPP : SLOT-IN RECEIVER ADAPTOR
Allows you to use the AMP 10-way receiver card connector as a
standard terminal block.

ANS400    : AERIAL FOR 433MHz RECEIVERS
ANQ800-1 : AERIAL FOR 868MHz RECEIVERS
ZVCRG58  : COAXIAL CABLE RG58 (per metre)

ANSKITGSMWF10 : KIT AERIAL EXTENSION 2G – 3G WiFi 10m SMA-M
ANSKITGSMWF5  : KIT AERIAL EXTENSION 2G – 3G WiFi 5m SMA-M

XRP03 : LITHIUM BATTERY 3V (2 X CR2032)

QUARTZ RECEIVER/TRANSCEIVER MODULE (433MHz – 868MHz)
Superheterodyne in FM with a digital filter.
Unidirectional (DG) and bidirectional (DG) versions.
RF module without decoder for the reception of digital signals.
Voltage: 5Vdc – Electrical input: 15mA.
Overall dimensions 40 x 20 x 13.
JRF433QFMDG1
JRF868QFMDG1
JRF433QFMBD0
JRF868QFMBD0

Additional information

Weight 3 kg
Dimensions 0,3 × 0,3 × 0,15 m
