KT-SL524CBX KIT

535,00 + TAX

In stock

KT-SL524CBX - KIT IRREVERSIBLE GEAR MOTOR FOR SLIDING GATES  24V

KT-SL524CBX - KIT COMPLETE IRREVERSIBLE MOTOR  GEARMOTOR 24V FOR SLIDING GATES 500Kg

SL524CB / SL524 CB -GEARMOTOR  MOTOR 24V FOR SLIDING GATES UP TO 500Kg
Electromechanical gearmotor ideal for residential sliding gates.
Complete with encoder, magnetic limits and advanced built-in control unit.

The automation KT-SL524CBX 24V motor is made up of self-locking gearmotor controlled by
encoder and magnetic travel limits with an in-built:
- electronic programmer;
- motor speed regulation;
- motor drive power regulation;
- double 8,2kΩ inputs for connecting safety edges;

- slot-in open collector receiver card.

The programmer of KT SL524CBX allows you to rapidly set the system parameters
including: the sequential button mode, automatic reclosing, warning
lamp pre-flashing, flashing warning lamp activation, indicator light and
photoelectric cell function setting etc.

KT SL524CBX USING
The kit contains all the command, control and safety devices required
to carry out a residential installation for medium to small size sliding
gates with a maximum weight of 500kg.
SL524CB 24V is Ideal for residential sliding gates up to 500kg.
The appliance is fitted with a safe and secure key-operated manual
release system protected by a plastic access door.

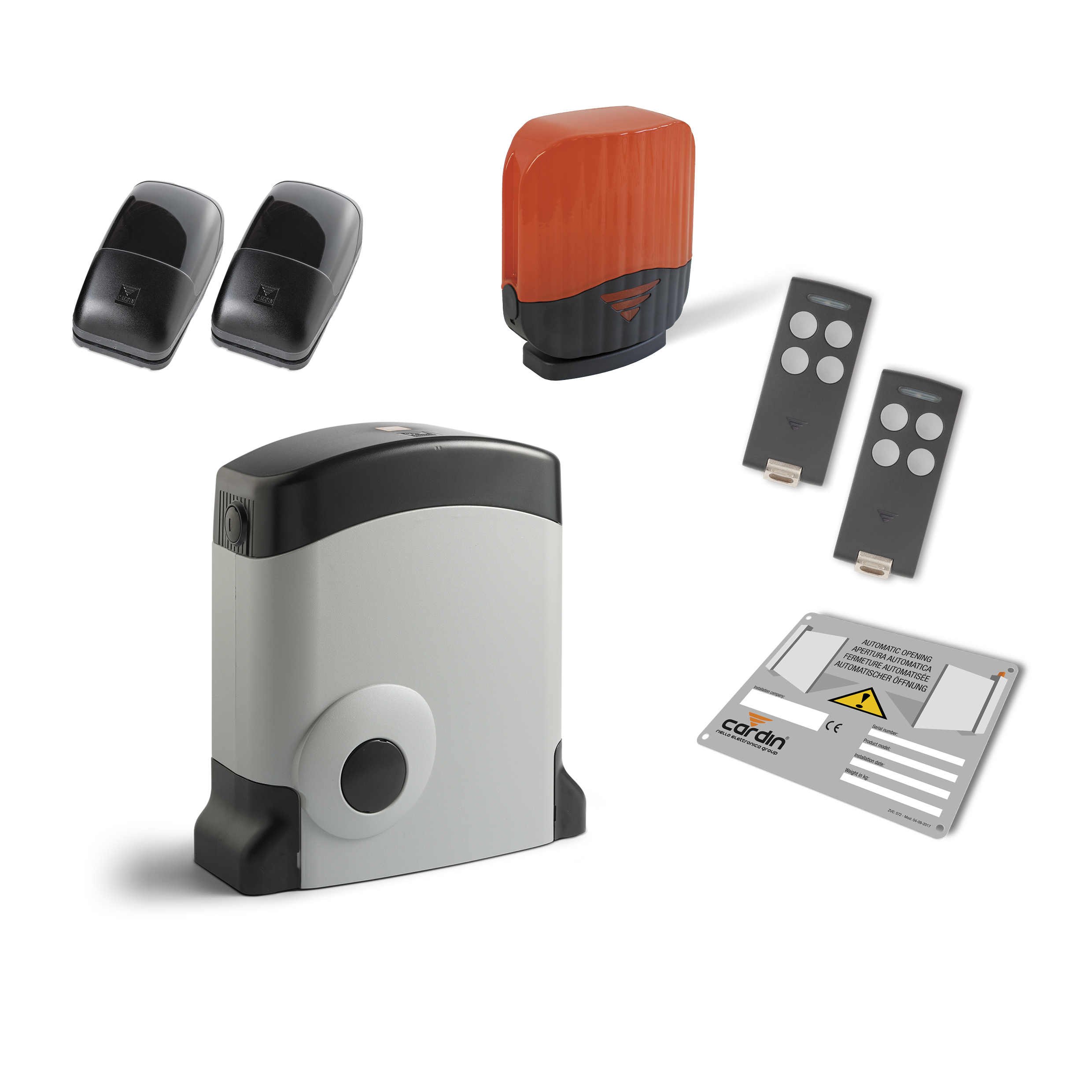

KT-SL524CBX KIT COMPLETE

SL524CB : SELF-LOCKING SLIDING GATE MOTOR
with an encoder-controlled 24Vdc motor and magnetic travel limits.
In-built electronic programmer.

RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card. S508 - S449 - S486 - FM - EDGE and
NOIRE versions are available on request.

TXQ504C4 : 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

CDR999 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 10m.

ICON : LED WARNING LIGHT
24V - 230V with an in-built aerial

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-KT-SL524CBX Categories: , , ,

KT-SL524CBX – KIT IRREVERSIBLE GEAR MOTOR FOR SLIDING GATES  24V

KT-SL524CBX – KIT COMPLETE IRREVERSIBLE MOTOR  GEARMOTOR 24V FOR SLIDING GATES 500Kg

SL524CB / SL524 CB -GEARMOTOR  MOTOR 24V FOR SLIDING GATES UP TO 500Kg
Electromechanical gearmotor ideal for residential sliding gates.
Complete with encoder, magnetic limits and advanced built-in control unit.

The automation KT-SL524CBX 24V motor is made up of self-locking gearmotor controlled by
encoder and magnetic travel limits with an in-built:
– electronic programmer;
– motor speed regulation;
– motor drive power regulation;
– double 8,2kΩ inputs for connecting safety edges;

– slot-in open collector receiver card.

The programmer of KT SL524CBX allows you to rapidly set the system parameters
including: the sequential button mode, automatic reclosing, warning
lamp pre-flashing, flashing warning lamp activation, indicator light and
photoelectric cell function setting etc.

KT SL524CBX USING
The kit contains all the command, control and safety devices required
to carry out a residential installation for medium to small size sliding
gates with a maximum weight of 500kg.
SL524CB 24V is Ideal for residential sliding gates up to 500kg.
The appliance is fitted with a safe and secure key-operated manual
release system protected by a plastic access door.

KT-SL524CBX KIT COMPLETE

SL524CB : SELF-LOCKING SLIDING GATE MOTOR
with an encoder-controlled 24Vdc motor and magnetic travel limits.
In-built electronic programmer.

RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card. S508 – S449 – S486 – FM – EDGE and
NOIRE versions are available on request.

TXQ504C4 : 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

CDR999 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 10m.

ICON : LED WARNING LIGHT
24V – 230V with an in-built aerial

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

SL524CB  / SL524 CB – ELECTROMECHANICAL UNIT WITH A 24V MOTOR

SL524CB  AUTOMATION – FAST SELF-LOCKING UNIT ENCODER 24V MAX. 500KG + NIMH BATTERIES FOR SLIDING GATES

The SL524CB automation is made up of a self-locking gear motor controlled
by magnetic encoder with an in-built:
– electronic programmer;
– 433MHz FM receiver;
– slot-in battery charger;
– NiMH batteries.

The electronic programmer of SL524CB automation system is factory fitted with a graphic LCD
display (16 digits x 2 lines) in six different languages that monitors
the programming stages, counts and displays the number of
manoeuvres carried out by the machine.

It allows you to rapidly set the system parameters including: the sequential button mode,
automatic reclosing, warning lamp pre-flashing, flashing warning
lamp activation, indicator light and photoelectric cell function setting
and transmitter code management etc.
The appliance is fitted with a safe and secure manual release system
with a personalised knob (supplied with the appliance).

SL524CB  AUTOMATION – ELECTROMECHANICAL GROUP WITH 24V

kt-SL524CBX  AUTOMATION motor or gearmotor  is a “complete machine” which contains all the electronic and mechanical
components required to manage gate positioning and the safety functions of the
installation.
Powerful and tireless, controlled by state of the art electronics, the
automation is fitted with a powerful direct current motor backed up by a finely
tuned double gear kinematic system which reduces the stress on the motor and
structure caused by the movement of heavy gates.

Installation is possible on any structure and the unit may be fitted both to the right
as well as to the left of the passageway.
Models are available for both residential and industrial use.
The use of low voltage motors increase the performance, guarantee high efficiency,
long life and silent running.

The integrated programmer allows encoder-controlled gate positioning and selfprogramming
thus reducing installation times to a minimum and optimising the programming procedure.

Repositioning takes place automatically whenever foreign objects get in the way of
the gate as it is moving. The electronic control unit is completed by the anti-crush
and “soft start” and “soft stop” functions.

Compatible with the system INTPRG-3G/WF that allows the system parameters to
be controlled and programmed remotely.
A slave motor, connected via cable with the Cardin MODCA slot-in modules
inserted, can be installed to drive two biparting sliding gates.

Multi-decoding:
The product range is factory fitted with a multi-decoding remote control module
(system S449 – S486 – S504 – S508), a battery charger and NiMH batteries
which allow the gate to be manoeuvred even during blackouts.

GENERAL CHARACTERISTICS SL524 – SL524CB AUTOMATION

SL524  AUTOMATION motor Power supply              Vac 230
Frequency                                                           Hz 50
Nominal electrical input                                        A 0,75
Power input                                                         W 170
Duty cycle                                                           % 70
Drag speed                                                          m/min 9,2
Torque max.                                                         Nm 42
Operating temperature range                                 °C -20°…+55
Protection grade                                                   IP 44

SLX24DRACO MOTOR DATA
Motor power supply                                              Vdc 24
Maximum power yield                                            W 38
Nominal electrical input                                         A 1,8

BUILT-IN RECEIVER CARD
Reception frequency                                              MHz 433.92 / 868,3
Channels                                                               No 4
Functions                                                              No 6
Stored codes                                                        No 300 / 1000

ACCESSORIES SL524CB  AUTOMATION

GEAR RACK
in polyamide with a steel core for sliding gates up to 800kg.
CREMP : VERSION WITH 6 LOWER FASTENING SLITS
30mm x 20mm, M4, 1m pieces.
CRENY : VERSION WITH 6 UPPER FASTENING SLITS
30mm x 20mm, M4, 1m pieces.

GEAR RACK
in nylon reinforced with glass fibre with a steel core for sliding gate up to 500kg.
CRENY1 : VERSION WITH 4 LOWER FASTENING SLITS
30mm x 20mm, M4, 1m pieces.

GEAR RACK
in galvanised steel for the SL524  AUTOMATION motor and industrial installations up to 3000 kg.
SLOAC : VERSION TO BE SOLDERED
22mm x 22mm, M4, 2m pieces.
SLOAC2 : VERSION WITH FASTENING SLITS
30mm x 12mm, M4, 1m pieces.

KBNIMH-1 : KIT BATTERY CHARGER + NIMH BATTERIES
Allows the SL524CB unit to work during blackouts.

SPEED CONTROLLER
The device should be fitted to the gear rack in alignment with the motor in
order to recuperate the correct sliding action of the gate in installations that
are slightly inclined.

BLUETOOTH MODULE
The module allows the exchange of information between the motor’s
electronic control unit and the Cardin 3G/WF interface via Bluetooth or
directly between the control units and the apps CRD ONE and CRD TWO.

DATA INTERFACE MODULE VIA CABLE
The module allows the exchange of information between the motor’s electronic
control unit and the Cardin 3G/WF interface and also allows you to connect
two motors via cable in order to use the synchronised master/slave function.

Additional information

Weight 20 kg
Dimensions 0,70 × 0,40 × 0,40 m
