BL1924ASW

264,00 + TAX

In stock

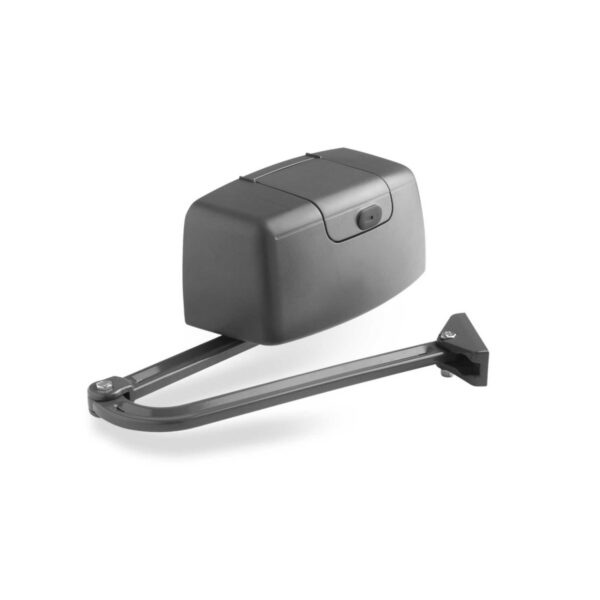

BL1924ASW DX - HINGED ARM AUTOMATION FOR
SWING GATE DX(RIGHT HAND) 24V MOTOR

 BL1924ASW DX  - HINGED ARM AUTOMATION FOR SWING DOOR DX(RIGHT HAND) WITH
ENCODER 24V PESO MAX. 150KG AND 2M

BL1924ASW  DX: RIGHT-HAND OPERATOR UNIT WITH A 24V MOTOR
Self-locking encoder-controlled operator:
- operator arm included;
- ECU to be ordered separately.

BL1924ASW DX  Operational constraints:

The equipment BL1924ASW DX is particularly suitable for gates
with pillars
large with internal hinges with respect to the pillar line.
Ideal also for gates with leaves up to 2 meters in length, max. 150kg.
The manual release takes place after the key door has been removed using the supplied key.

Compare
SKU: CA-BL1924ASW Categories: , , ,

BL1924ASW DX – HINGED ARM AUTOMATION FOR
SWING GATE DX(RIGHT HAND) 24V MOTOR

 BL1924ASW DX  – HINGED ARM AUTOMATION FOR SWING DOOR DX(RIGHT HAND) WITH
ENCODER 24V PESO MAX. 150KG AND 2M

BL1924ASW  DX: RIGHT-HAND OPERATOR UNIT WITH A 24V MOTOR
Self-locking encoder-controlled operator:
– operator arm included;
– ECU to be ordered separately.

BL1924ASW DX  Operational constraints:

The equipment BL1924ASW DX is particularly suitable for gates
with pillars
large with internal hinges with respect to the pillar line.
Ideal also for gates with leaves up to 2 meters in length, max. 150kg.
The manual release takes place after the key door has been removed using the supplied key.

BL1924ASW DX – ELECTROMECHANICAL SLAVE GROUP WITH 24V MOTOR

Self-locking electromechanical operators BL1924ASW DX with 24V and 230V models suitable
for fitting to single or double hinged gates with opening to the left or to the right
of the passageway.

Compact, robust and carefully designed, these appliances
are the ideal solution for domestic automated gates with ultra wide columns
even where the opening direction of the gate is contrary to the position of the
motor.

The finishing and high quality materials used guarantee one hundred
percent resistance to atmospheric agents and the technical and design solutions
characterise and heighten the quality standard.

The system is made up of one or two operator arms managed by an external
Cardin electronic programmer housed in a shockproof and waterproof container.
The units do not feature on board electronics and we advise you to use a
Cardin electronic programmer.
– PRG230M2 T600 for 1 or 2 230V motors;
– CC242ETOPCB – CC242EXTOPCB T624 for 1 or 2 24V motors;
On the 24V BL1924ASW DX model for swing door position is encoder-controlled and selfprogramming
thus reducing installation times to a minimum and optimising the
programming procedure.

Swing Gate repositioning take place automatically whenever foreign objects get in the
way of the gate as it is moving. The electronic control unit is completed by the
anti-crush and “soft start” and “soft stop” functions.
On the 230V – BL1920 model gate positioning is controlled with mechanical
travel limits.

Both versions are fitted with a key-operated manual release mechanism.
A powerful unit that blends into all backgrounds and gives your gate regular and
silent movement.

SELF-PROGRAMMING ELECTRONIC CONTROL UNIT FOR BL1924ASW DX -BL1924LSW SX

Programmer for the management of two encoder-controlled motors BL1924ASW DX and BL1924LSW SX.
Mains power supply 230Vac.
Motor power supply 24Vdc.
Maximum power yield 250W.
Fitted with a multi-decoding module S449-S486-S504-S508.
Compatible with the INTPRG-3G/WF system that allows the monitoring and
programming of system parameters from remote positions.
Batteries and a battery charger in the CC242ETOPCB and CC242EXTOPCB  AND T624 versions

PRG230M2 / T600 : SELF-PROGRAMMING ECU FOR BL1920-BL1920L

Programmer for the control of two motors BL1920 DX and BL1920L SX.
Power supply 230Vac.
Motor power supply 230Vac.
Maximum power yield for two motors 470 + 470 W.
The programmer is factory set for the insertion of a Cardin standard receiver
card.

OPERATOR ARM TECHNICAL SPECIFICATIONS BL1924ASW-BL1924LSW

BL1924ASW DX Motor power supply                   V          24Vdc
Electrical input                                                A          2
Power input                                                     W         60
Duty cycle                                                        %         70
Opening time 90°                                              s          12,5
Maximum opening angle                                     °          130
Maximum torque                                                Nm      170
Protection grade                                                 IP        44

ACCESSORIES BL1924ASW DX

CC242ETOP : ELECTRONIC CONTROL UNIT

CC242ETOPCB : ECU, BATTERY CHARGER AND NiMH BATTERIES

CC242EXTOPCB : ECU, BATTERY CHARGER AND NiMH BATTERIES

KBNIMH-1 : KIT BATTERY CHARGER + NIMH BATTERIES
Allows the CC242ETOP unit to work the BL1924ASW DXduring blackouts of swing door.

Additional information

Weight 15 kg
Dimensions 0,60 × 0,40 × 0,40 m
