ASY524

In stock

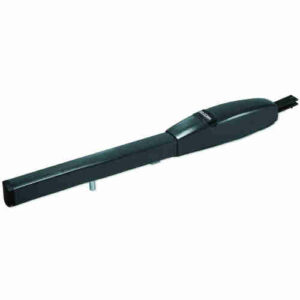

ASY524 - ELECTROMECHANICAL PISTON 24V FOR SWING GATES

ASY524 - IS IN PHASE OUT
MOTOR  REPLACED BY THE MODEL : BLADE524

ASY 524 / ASY524 - ELECTROMECHANICAL MOTOR 24V FOR SWING GATES
Electromechanical operator, ideal for swing gates up to 5 metres.
Equipped with encoder, release with encoded key and rear swing support.
Safe thanks to the precision and sensitivity of the encoder.
Practical electrical connections and manual release.
Versatile in all models and accessories.
Reliable with sturdy structure in corrosion treated aluminium.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: TE-ASY524 Categories: ,

ASY524 – ELECTROMECHANICAL PISTON 24V FOR SWING GATES

ASY524 – IS IN PHASE OUT
MOTOR  REPLACED BY THE MODEL : BLADE524

ASY 524 / ASY524 – ELECTROMECHANICAL MOTOR 24V FOR SWING GATES
Electromechanical operator, ideal for swing gates up to 5 metres.
Equipped with encoder, release with encoded key and rear swing support.
Safe thanks to the precision and sensitivity of the encoder.
Practical electrical connections and manual release.
Versatile in all models and accessories.
Reliable with sturdy structure in corrosion treated aluminium.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

ASY524
24 V irreversible electromechanical ASY524 MOTOR .
For leafs up to 5 m.

TECHNICAL SPECIFICATIONS ASY524

Motor power supply                                                   230 V 24 V
Max. motor current                                                   5 A
Motor power                                                             120 VA
Thrust                                                                      1900 N
Max opening                                                             120°
Rod stroke                                                               350 mm
Actuator speed                                                         16 mm/s
Work cycles                                                             intensive
Capacitor                                                                10 microF – –
Encoder                                                                  YES
Electrical limit switches (forseen)                               optional
Mechanical limit switches (forseen)                            AP / CH
Grease lubricant                                                      TS10

TECHNICAL SPECIFICATIONS CONTRL UNIT T624/T124
Control unit for 1/2 motors 230 V, MODEL          T124/T624
Power supply                                                   24V
Max. current                                                    6,3 A
encoder control                                               YES
torque adjustment                                           YES
slowing down.                                                 YES

GENERAL DATA ASY 524
Working temperature                         -20 +55 °C
Protection level                                  IP 44
Weight                                              10 Kg 09 Kg 11Kg
Pallet                                                40 pcs

ACCESSORIES ASY524 GEARMOTOR

ELV
Vertical/horizontal electric lock 12 V.

SERIE OC2
2 channels plug in receiver.


SUPBAT
Pair of brackets to fix 2 BAT12V2a to the cover
of control units box.
BAT12V2A
Battery 12V 2Ah.
CB24
24 V battery charger. Suitable for 24 V control units.

BLA
Leaf stopper.

SRA
Adjustable front bracket. Pack of 2pcs.

SRP
Adjustable rear bracket. Pack of 2pcs.

T624/T124
Control unit for 1/2 motors 24 V, with encoder control, torque adjustment and slowing down.
For ASY3 and ASY5.

FCMASY
Mechanical opening and closing limit switches.
Pack of 4 pcs.

FCEASY
Electrical opening and closing limit switches.
Pack of 2 pcs.

SUN POWER
Solar power kit with solar panel and battery.
Suitable for all 24 V control units.

Additional information

Weight 15 kg
Dimensions 1,50 × 0,40 × 0,40 m
