STONE5

In stock

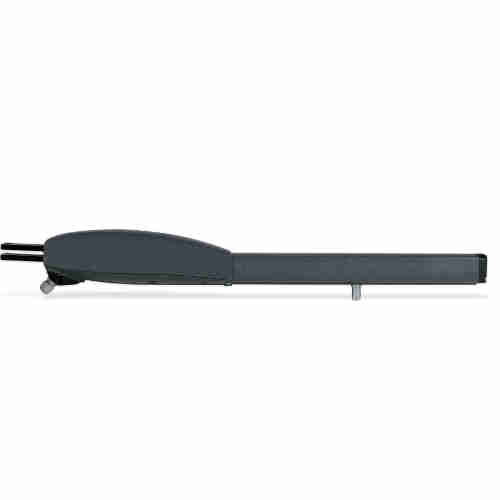

STONE5 STONE 5 - ELECTROMECHANICAL PISTON 230V FOR SWING GATES

STONE5 - IS IN PHASE OUT
REPLACED BY THE MODEL : BLADE5

STONE5 / STONE 5 - ELECTROMECHANICAL PISTON 230V FOR SWING GATES
Electromechanical actuators or motor STONE5 is ideal for swing gates up to 5 meters.
Equipped with encoder, release mechanism with coded key, and oscillating rear bracket.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable with a sturdy aluminum body treated against oxidation and the oscillating rear

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: TE-STONE5 Categories: , ,

STONE5 STONE 5 – ELECTROMECHANICAL PISTON 230V FOR SWING GATES

STONE5 – IS IN PHASE OUT
REPLACED BY THE MODEL : BLADE5

STONE5 / STONE 5 – ELECTROMECHANICAL PISTON 230V FOR SWING GATES
Electromechanical actuators or motor STONE5 is ideal for swing gates up to 5 meters.
Equipped with encoder, release mechanism with coded key, and oscillating rear bracket.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable with a sturdy aluminum body treated against oxidation and the oscillating rear
bracket that absorbs the possible sagging of the leafs.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

 STONE5 IT IS REPLACED BY BLADE5
230 V irreversible electromechanical piston.
For leafs up to 5 m.
STONE5REV  IT IS REPLACED BY BLADE5REV
230 V reversible electromechanical piston .
For leafs up to 5 m.

TECHNICAL SPECIFICATIONS STONE5 STONE5REV

Motor power supply                                                   230 V
Max. motor current                                                   1,6 A 1,4 A
Motor power                                                             370 VA 330 VA
Thrust                                                                      1600 N
Max. gate weight                                                       250 Kg
Max opening                                                             120°
Rod stroke                                                               500 mm
Actuator speed                                                         19 mm/s
Work cycles                                                             30 %
Capacitor                                                                10 μF
Encoder                                                                  YES
Mechanical limit switches (forseen)                            AP
Grease lubricant                                                      TS10

TECHNICAL SPECIFICATIONS CONTRL UNIT T101/T600
Control unit for 1/2 motors 230 V, MODEL          T101/T600
Power supply                                                   230 V
Max. current                                                    6,3 A
encoder control                                               YES
torque adjustment                                           YES
slowing down.                                                 YES


GENERAL DATA STONE 5
Working temperature                         -20 +55 °C
Protection level                                  IP 44
Weight                                              10 Kg 09 Kg 08Kg
Pallet                                                40 pcs

ACCESSORIES STONE5

ELV
Vertical/horizontal electric lock 12 V.

SERIE OC2
2 channels plug in receiver.

SUPBAT
Pair of brackets to fix 2 BAT12V2a to the cover
of control units box.
BAT12V2A
Battery 12V 2Ah.
CB24
24 V battery charger. Suitable for 24 V control units.

BLA
Leaf stopper.

SRA
Adjustable front bracket. Pack of 2pcs.

SRP
Adjustable rear bracket. Pack of 2pcs.

T600/T101
Control unit for 1/2 motors or actuators 230 V, with encoder control, torque adjustment and slowing down.
For STONE3 and STONE5.

FC STONE
Mechanical limit switch. Pack of 2 pcs.

SUN POWER
Solar power kit with solar panel and battery.
Suitable for all 24 V control units.

Additional information

Weight 10 kg
Dimensions 1,50 × 0,40 × 0,40 m
