STAR2AE

409,00 + TAX

In stock

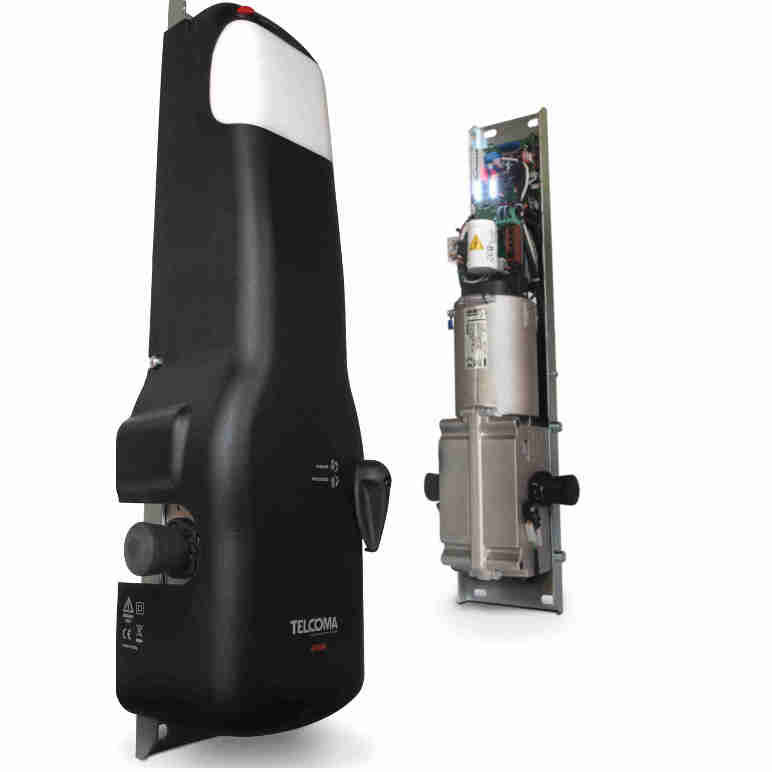

STAR 2AE / STAR2AE  - SLAVE SELF-LOCKING SWINGING GARAGE DOOR MOTOR 230V

STAR 2AE / STAR2AE - EELECTROMECHANICAL MOTOR FOR OVERHEAD DOORS
Electromechanical gearmotor 230 V ideal for overhead doors up to 8 m2.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
LED courtesy light.
Versatile, with a wide choice of accessories for any installation need.

STAR2AE
230 V irreversible electromechanical gearmotor.
Complete with electric limit switches, encoder and control unit.
With autotransformer and torque adjustment.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: TE-STAR-2AE Categories: ,

STAR 2AE / STAR2AE  – SLAVE SELF-LOCKING SWINGING GARAGE DOOR MOTOR 230V

STAR 2AE / STAR2AE – EELECTROMECHANICAL MOTOR FOR OVERHEAD DOORS
Electromechanical gearmotor 230 V ideal for overhead doors up to 8 m2.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
LED courtesy light.
Versatile, with a wide choice of accessories for any installation need.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

STAR2AE
230 V irreversible electromechanical gearmotor.
Complete with electric limit switches, encoder and control unit.
With autotransformer and torque adjustment.

STAR2AE Control Unit

The integrated programmer allows encoder and limit switch controlled gate
positioning and self-programming thus reducing installation times to a minimum
and optimising the programming procedure.
The electronic control unit controls are completed by the anti-crush and “soft start”
and “soft stop” functions.

Open collector:
The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
TELCOMA  catalogue EDGE NOIRE FM400 .

TECHNICAL SPECIFICATIONS STAR2AE

Motor power supply                                               230 V
Max. motor current                                                1,7 A
Motor power                                                          360 W
Max. torque                                                           400 Nm
Max. door surface                                                  8 m2
Opening time                                                         20 sec
Work cycles                                                           40%
Capacitor                                                              10 μF
Encoder optional                                                    YES
Limit switches                                                         –
Grease lubricant                                                    TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit  STAR2AE
Power supply                                                                    230 V
Max. current                                                                     6,3 A
Electronic slow down                                                         YES
Compatible with Sun Power                                                 NO

GENERAL DATA  STAR 2AE

Working temperature                                    -20 +55 °C
Protection level                                             IP 30
Weight                                                          10,5 Kg
Pallet                                                           35 pcs

ACCESSORIES STAR2AE

SS60STAR A
Support bracket 60 cm.
Galvanized steel.

BDB
Pair of straight arms with round bush for AT shafts.

CB24
24 V battery charger.
Suitable for 24 V control units.
SPB24
External box with 2 batteries 12V 7Ah.

SS200STAR A
Support bracket 200 cm.
Galvanised steel.

BDBUS
Streight arm with grooved bush for motor shaft.

AT20
Driving shaft 20 cm.
Support included

BCB
Pair of curved arms with round bush for AT shafts.

S101B
Control unit for 1 motor 230 Vac, with torque adjustment, slowing
down and encoder for overhead doors.

AT150
Driving shaft 150 cm.
Support included

KSN
External release kit for sectional and overhead door with code key.

SERIE OC2
2 channels plug in receiver.

AT200
Driving shaft 200 cm.
Support included

FC STAR 1E
Limit switch kit and encoder for STAR 1E

FC STAR 1E24
Limit switch kit and encoder for STAR 1E24.

SUN POWER
Solar power kit with solar panel and battery.
Suitable for all 24 V control units.

Additional information

Weight 10 kg
Dimensions 1,00 × 0,40 × 0,40 m
