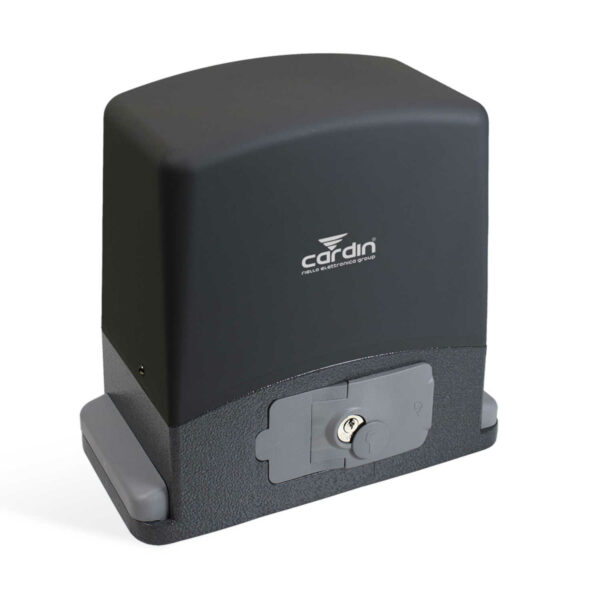

SLX624CB MOTOR

492,00 + TAX

In stock

SLX824CB  / SLX824 CB - ELECTROMECHANICAL UNIT WITH A 24V MOTOR

SLX824CB  AUTOMATION- FAST SELF-LOCKING UNIT ENCODER 24V MAX. 800KG + NIMH BATTERIES FOR SLIDING AUTOMATION

The SLX824CB  motor for sliding automation gate is made up of a self-locking gear motor (with a gate
drag speed of 13 metres/minute) controlled by magnetic encoder with an in-built:
- electronic programmer;
- 433MHz FM receiver;
- slot-in battery charger (SLX824CB - SLX1524CB);
- NiMH batteries (SLX824CB - SLX1524CB);
- reversible motor (SLX1024REV).

The electronic programmer is factory fitted with a graphic LCD display
(128 x 128 pixels) with backlighting in six different languages.
The menu allows you to rapidly set the system parameters including:
the sequential button mode, automatic reclosing, warning lamp
pre-flashing, intermittent warning lamp activation, indicator light and
photoelectric cell function setting etc.

The electronics card, thanks to the presence of the real-time clock,
allows you to set 10 events (shown on the display) and these events
permit you to regulate the opening and closing of the motor at
different times during the day within 3 weekly time bands (Mon-
Fri, Sat-Sun, Mon-Sun).

The events can be enabled or disabled (during holiday periods)
either from the menu or by means of a radio channel.
The appliance is fitted with a safe and secure manual
release system activated by a personalised key.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-SLX624CB Categories: , , ,

SLX624CB  / SLX624 CB ELECTROMECHANICAL UNIT WITH A 24V MOTOR

SLX624CB  AUTOMATION MOTOR- FAST SELF-LOCKING UNIT ENCODER 24V MAX. 500KG + NIMH BATTERIES FOR SLIDING GATES

The SLX624CB  motor for sliding automation gate is made up of a self-locking gear motor (with a gate
drag speed of 13 metres/minute) controlled by magnetic encoder with an in-built:
– electronic programmer;
– 433MHz FM receiver;
– slot-in battery charger (SLX624CB – SLX1524CB);
– NiMH batteries (SLX624CB – SLX1524CB);

The electronic programmer is factory fitted with a graphic LCD display
(128 x 128 pixels) with backlighting in six different languages.
The menu allows you to rapidly set the system parameters including:
the sequential button mode, automatic reclosing, warning lamp
pre-flashing, intermittent warning lamp activation, indicator light and
photoelectric cell function setting etc.

The electronics card, thanks to the presence of the real-time clock,
allows you to set 10 events (shown on the display) and these events
permit you to regulate the opening and closing of the motor at
different times during the day within 3 weekly time bands (Mon-
Fri, Sat-Sun, Mon-Sun).

The events can be enabled or disabled (during holiday periods)
either from the menu or by means of a radio channel.
The appliance is fitted with a safe and secure manual
release system activated by a personalised key.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

SLX624CB  AUTOMATION – ELECTROMECHANICAL GROUP WITH 24V

SLX624CB  motor automation  is a “complete machine” which contains all the electronic and mechanical
components required to manage gate positioning and the safety functions of the
installation.

Powerful and tireless, controlled by state of the art electronics, the
automation is fitted with a powerful direct current motor backed up by a finely
tuned double gear kinematic system which reduces the stress on the motor and
structure caused by the movement of heavy gates.

Installation is possible on any structure and the unit may be fitted both to the right
as well as to the left of the passageway.
Models are available for both residential and industrial use.
The use of low voltage motors increase the performance, guarantee high efficiency,
long life and silent running.

The integrated programmer allows encoder-controlled gate positioning and selfprogramming
thus reducing installation times to a minimum and optimising the programming procedure.

Repositioning takes place automatically whenever foreign objects get in the way of
the gate as it is moving. The electronic control unit is completed by the anti-crush
and “soft start” and “soft stop” functions.

Compatible with the system INTPRG-3G/WF that allows the system parameters to
be controlled and programmed remotely.
A slave motor, connected via cable with the Cardin MODCA slot-in modules
inserted, can be installed to drive two biparting sliding gates.

Multi-decoding:
The product range is factory fitted with a multi-decoding remote control module
(system S449 – S486 – S504 – S508), a battery charger and NiMH batteries
which allow the gate to be manoeuvred even during blackouts.

GENERAL CHARACTERISTICS SLX624CB  AUTOMATION

SLX624CB Automation Power supply                    Vac 230
Frequency                                                           Hz 50
Nominal electrical input                                        A 0,9
Power input                                                         W 180
Duty cycle                                                           % 70
Drag speed                                                          m/min 13
Torque max.                                                         Nm 57
Operating temperature range                                 °C -20°…+55
Protection grade                                                   IP 44

SLX624CB MOTOR DATA
Motor power supply                                              Vdc 24
Maximum power yield                                            W 130
Nominal electrical input                                         A 3,5

BUILT-IN RECEIVER CARD
Reception frequency                                              MHz 433.92 / 868,3
Channels                                                               No 4
Functions                                                              No 8
Stored codes                                                        No 300 / 1000

ACCESSORIES SLX624CB  AUTOMATION

GEAR RACK
in polyamide with a steel core for sliding gates up to 800kg.
CREMP : VERSION WITH 6 LOWER FASTENING SLITS
30mm x 20mm, M4, 1m pieces.
CRENY : VERSION WITH 6 UPPER FASTENING SLITS
30mm x 20mm, M4, 1m pieces.

GEAR RACK
in nylon reinforced with glass fibre with a steel core for sliding gate up to 500kg.
CRENY1 : VERSION WITH 4 LOWER FASTENING SLITS
30mm x 20mm, M4, 1m pieces.

GEAR RACK
in galvanised steel for the SLX824CB automation and industrial installations up to 3000 kg.
SLOAC : VERSION TO BE SOLDERED
22mm x 22mm, M4, 2m pieces.
SLOAC2 : VERSION WITH FASTENING SLITS
30mm x 12mm, M4, 1m pieces.

KBNIMH-1 : KIT BATTERY CHARGER + NIMH BATTERIES
Allows the SL524 unit to work during blackouts.

KBNIMH-D : KIT BATTERY CHARGER + NIMH BATTERIES
Allows the SLX824CB automation unit to work during blackouts.

SPEED CONTROLLER
The device should be fitted to the gear rack in alignment with the motor in
order to recuperate the correct sliding automation action of the gate in installations that
are slightly inclined.

BLUETOOTH MODULE
The module allows the exchange of information between the motor’s
electronic control unit and the Cardin 3G/WF interface via Bluetooth or
directly between the control units and the apps CRD ONE and CRD TWO.

DATA INTERFACE MODULE VIA CABLE
The module allows the exchange of information between the motor’s electronic
control unit and the Cardin 3G/WF interface and also allows you to connect
two motors via cable in order to use the synchronised master/slave function.

Additional information

Weight 15 kg
Dimensions 0,60 × 0,40 × 0,40 m
