SLEVO1200

510,00 + TAX

In stock

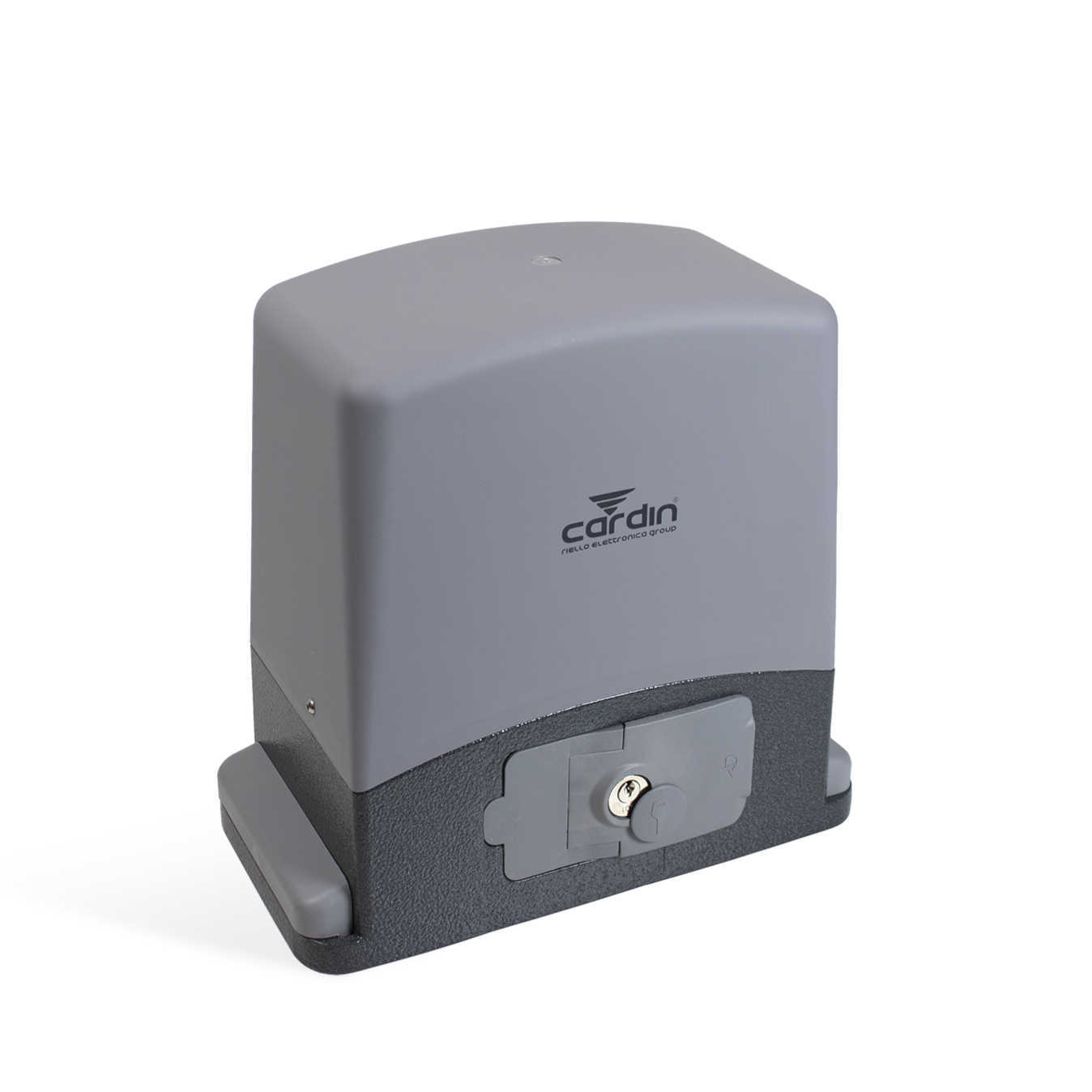

SLEVO1200 / SLEVO 1200 - IRREVERSIBLE GEAR MOTOR FOR SLIDING GATES  230V

SLEVO1200 / SLEVO 1200 SELF-LOCKING SLIDING GATE MOTOR 230V 1200Kg
For residential/industrial sliding gates up to 1200kg. Complete with
encoder, magnetic limits, electronic brake and a built-in control unit.
Constant performance over time and in any condition thanks to reduced
wear&tear and the possibility to maintain the oil at the ideal temperature
(in the versions SLEVO800 and SLEVO1200) using HOT (optional).

The appliance is fitted with a safe and secure key-operated manual
release system protected by a plastic access door.
ELECTROMECHANICAL GEAR MOTOR POWERED BY 230V
Grease lubrication. For gates up to 1200kg.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-SLEVO1200 Categories: , , ,

SLEVO1200 / SLEVO 1200 – IRREVERSIBLE GEAR MOTOR FOR SLIDING GATES  230V

SLEVO1200 / SLEVO 1200 SELF-LOCKING SLIDING GATE MOTOR 230V 1200Kg
For residential/industrial sliding gates up to 1200kg. Complete with
encoder, magnetic limits, electronic brake and a built-in control unit.
Constant performance over time and in any condition thanks to reduced
wear&tear and the possibility to maintain the oil at the ideal temperature
(in the versions SLEVO800 and SLEVO1200) using HOT (optional).

The appliance is fitted with a safe and secure key-operated manual
release system protected by a plastic access door.
ELECTROMECHANICAL GEAR MOTOR POWERED BY 230V
Grease lubrication. For gates up to 1200kg.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

EVO1200 – IRREVERSIBLE GEARMOTOR FOR SLIDING GATES
Electromechanical gearmotor ideal for sliding gates up to 1200 Kg.
Complete with encoder, magnetic limits and built built-in control unit.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Versatile fixing plate with adjustable height and depth.
Reliable with a sturdy aluminum base treated against oxidation and a powerful 230 Vac motor on bearings.
Manual release with coded lock.

SELF-PROGRAMMING AUTOMATION FOR SLIDING GATES CARDIN TRADE SERIES SL EVO

Electromechanical SLEVO1200 gear motor suitable for gate positioning control and safety
system management. Ideal for residential/industrial sliding gates powered by 230V.
Powerful, rapid and controlled by state of the art electronics, the gate automation
units are fitted with powerful motors backed up by a finely tuned double gear
kinematic system which reduces the stress on the motor and structure caused by
the movement of gates.

The reduction unit stator is made of die cast aluminium and contains a never
ending screw immersed in an oil bath (lubricated with grease for the SLEVO800).
Installation, on a robust and rust proof base, is possible on any structure and the
unit may be fitted both to the right as well as to the left of the passageway.

The integrated programmer of SLEVO1200 gear motor allows encoder-controlled gate positioning
and selfprogramming thus reducing installation times to a minimum and optimising the
programming procedure.

The electronic control unit of SLEVO 1200 is completed by the anti-crush and “soft start” and “soft
stop” functions.

Open collector:

The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
Cardin catalogue.

SLEVO1200 MOTOR / ENGINE FEATURES

Motor power supply                         230 V
Max. motor current                         5,2 A
Motor power                                   1100 W
Max. torque                                    45 Nm
Thrust                                           1200 N
Max gate weight                             1200 Kg
Actuator speed                              10 m/min
Work cycles                                   intensive
Encoder                                        YES
Magnetic limit switch                      YES
Thermal protection                        150 °C
Oil lubricant                                  TS40

SLEVO 1200 ELECTRONIC CONTROL UNIT FEATURES
Model                                         T101
Power supply                               230 V
Max current                                 6.3 A
Electronic slowdown                    YES
Compatible with Sun Power          NO
GENERAL FEATURES EVO 800
Operating temperature              -20 +55 ° C
Degree of protection                 IP 44
Weight                                     14 Kg

ACCESSORIES SLEVO1200 GEAR MOTOR

CREMP
Plastic rack with steel core. M4 30×20 mm, complete with washers and self boring screws 6,3×25.
Pack of 10 pcs 1 m each.

SLOAC2
Metal rack 30MMx12mmX1M complete with DSC welding spacer,
Pack of 4 pcs of 1 m.

SLOAC
Metal rack. 22mm x12mmX2m

SERIE OC2
2 channels plug in receiver for control unit of SLEVO1200 gear motor.

CPEVO
Base plate.

RVS
Mechanical brake for gates on sloping ground.

DSC
Weldable spacers for SLOAC and SLOAC2 .
Pack of 30 pcs.

DAC
Screwable spacers for CREM12 and CREM8.
Pack of 30 pcs

DAP
Screwable and adjustable spacers for CREM12
and CREM8. Pack of 3 pcs.

Additional information

Weight 25 kg
Dimensions 0,50 × 0,40 × 0,40 m
