KT-SLACEFAST

396,00 + TAX

In stock

KT-SLACEFAST - KIT IRREVERSIBLE GEAR MOTOR FOR SLIDING GATES  24V

KT SLACEFAST / KT-SLACEFAST - KIT COMPLETE IRREVERSIBLE GEARMOTOR 24V FOR SLIDING GATES 300Kg

SLACEFAST / ACEFAST -GEARMOTOR 24V FOR SLIDING GATES UP TO 300Kg
Electromechanical gearmotor ideal for residential sliding gates.
Complete with encoder, magnetic limits and advanced built-in control unit.

The automation KT SLACEFAST 24V gearmotor is made up of self-locking gear motor controlled by
encoder and magnetic travel limits with an in-built:
- electronic programmer;
- motor speed regulation;
- motor drive power regulation;
- double 8,2kΩ inputs for connecting safety edges;

- slot-in open collector receiver card.

The programmer OF KT SLACEFAST allows you to rapidly set the system parameters
including: the sequential button mode, automatic reclosing, warning
lamp pre-flashing, flashing warning lamp activation, indicator light and
photoelectric cell function setting etc.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-KT-SLACEFAST Categories: , , ,

KT-SLACEFAST – KIT IRREVERSIBLE GEAR MOTOR FOR SLIDING GATES  24V

KT SLACEFAST / KT-SLACEFAST – KIT COMPLETE IRREVERSIBLE GEARMOTOR 24V FOR SLIDING GATES 300Kg

SLACEFAST / ACEFAST -GEARMOTOR 24V FOR SLIDING GATES UP TO 300Kg
Electromechanical gearmotor ideal for residential sliding gates.
Complete with encoder, magnetic limits and advanced built-in control unit.

The automation KT SLACEFAST 24V gearmotor is made up of self-locking gear motor controlled by
encoder and magnetic travel limits with an in-built:
– electronic programmer;
– motor speed regulation;
– motor drive power regulation;
– double 8,2kΩ inputs for connecting safety edges;

– slot-in open collector receiver card.

The programmer OF KT SLACEFAST allows you to rapidly set the system parameters
including: the sequential button mode, automatic reclosing, warning
lamp pre-flashing, flashing warning lamp activation, indicator light and
photoelectric cell function setting etc.

KT SLACEFAST USING
The kit contains all the command, control and safety devices required
to carry out a residential installation for medium to small size sliding
gates with a maximum weight of 300kg.
SLACEFAST 24V is Ideal for residential sliding gates up to 300kg.
The appliance is fitted with a safe and secure key-operated manual
release system protected by a plastic access door.

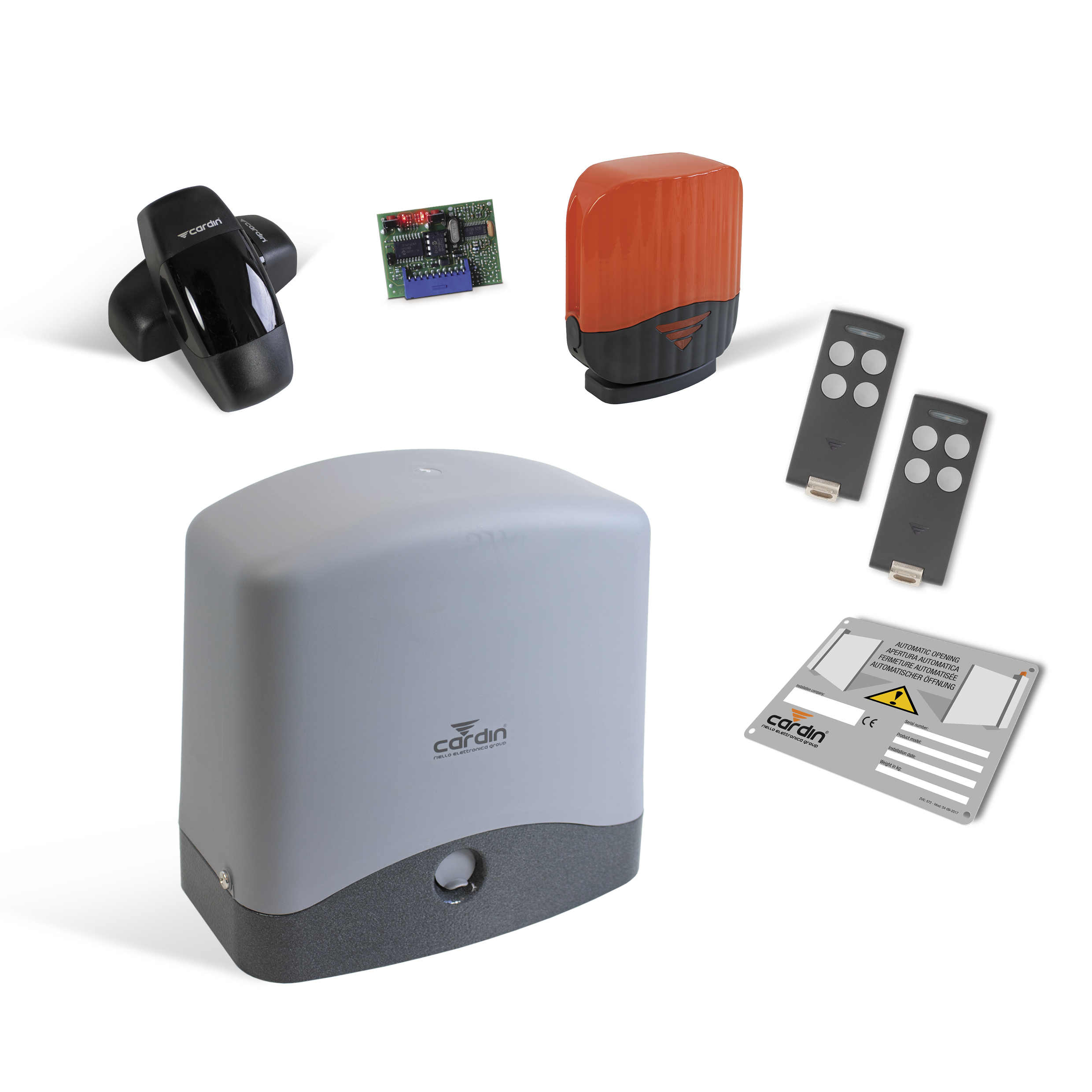

KT SLACEFAST KIT COMPLETE

SLACEFAST : SELF-LOCKING SLIDING GATE MOTOR
with an encoder-controlled 24Vdc motor and magnetic travel limits.
In-built electronic programmer.

RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card. S508 – S449 – S486 – FM – EDGE and
NOIRE versions are available on request.

2 TXQ504C4 : 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.

ICON : LED WARNING LIGHT
24V – 230V with an in-built aerial

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

ACE601 -GEARMOTOR FOR SLIDING GATES UP TO 300Kg
The KT SLACEFAST electromechanical gearmotor ideal for residential sliding gates. Complete with encoder,
magnetic limits and advanced built-in control unit.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plugin receiver and self-learning function. The buffer
batteries (optional) are housed directly inside the motor.
Fast adjustable speed up to 16 m/minute.
Reliable with a sturdy aluminum base treated against oxidation and a powerful 24 Vdc motor on bearings

SELF-PROGRAMMING AUTOMATION FOR SLIDING GATES 24V

Electromechanical gearmotor KT SLACEFAST 24V suitable for gate positioning control and safety
system management. Ideal for residential sliding gates the unit moves gates up to
16 metres per minute with speed regulation.
Powerful, rapid and controlled by state of the art electronics, the unit is fitted
with a powerful direct current motor backed up by a finely tuned double gear
kinematic system which reduces the stress on the motor and structure caused by
the movement of gates.

The reduction unit stator is made of die cast aluminium and contains a never
ending screw and double reduction lubricated with grease.
Installation, on a robust and rust proof base, is possible on any structure and the
unit may be fitted both to the right as well as to the left of the passageway.
The use of direct current motors increases the performance, guarantees high
efficiency, long life and silent running.

The integrated programmer of KT SLACEFAST 24V gearmotor allows encoder-controlled
gate positioning and selfprogramming thus reducing installation times to a minimum and
optimising the programming procedure.
Repositioning takes place automatically whenever foreign objects get in the way of
the gate as it is moving. The electronic control unit is completed by the anti-crush
and “soft start” and “soft stop” functions.

Open collector:

The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
Cardin catalogue.

TECHNICAL SPECIFICATIONS GEARMOTOR SLACEFAST 24V / ACE FAST 24V

Motor power supply                            24 Vdc
Max. motor current                             4 A
Max thrust                                          340 N
Motor power                                       100 W
Max. torque                                       15 Nm
Max gate weight                                 300 Kg
Actuator speed (m/min)                      10-16
Work cycles                                        40%
Type of central unit                             AF124
Encoder                                             YES
Magnetic limit switch                           YES
Grease lubricant                                 TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit AF124
Voltage supply                                  230 V
Max. current                                     0,5A
Electronic slow down                          YES
Compatible with Sun Power               YES

GENERAL DATA
Working temperature                         -20 +55°C
Protection level                                 IP44
Weight                                             12,5 Kg

ACCESSORIES KT SLACEFAST GEARMOTOR

CREMP
Plastic rack with steel core. M4 30×20 mm, complete with washers and self boring screws 6,3×25.
Pack of 10 pcs 1 m each.

SLOAC2
Metal rack 30MMx12mmX1M complete with DSC welding spacer,
Pack of 4 pcs of 1 m.

SLOAC
Metal rack. 22mm x12mmX2m

SERIE OC2
2 channels plug in receiver.

KBNIMH-T2 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers to work during blackouts

SUN POWER
Solar power kit with solar panel and battery.
Suitable for all 24 V gearmotor control units and KT SLACEFAST 24V.

CPEVO
Base plate.

RVS
Mechanical brake for gates on sloping ground.

DSC
Weldable spacers for SLOAC and SLOAC2 .
Pack of 30 pcs.

DAC
Screwable spacers for CREM12 and CREM8.
Pack of 30 pcs

DAP
Screwable and adjustable spacers for CREM12
and CREM8. Pack of 3 pcs.
