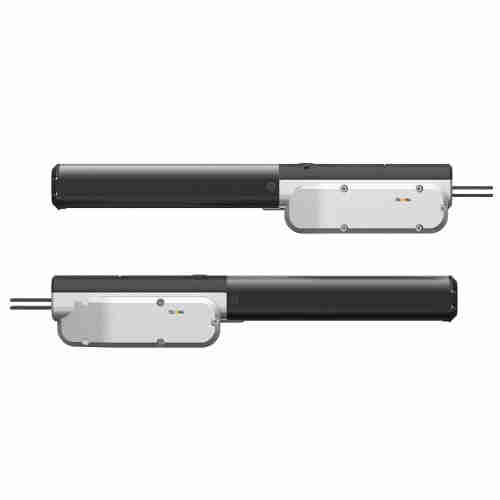

KT-BL ASY3 - ELECTROMECHANICAL RAM 230V IRREVERSIBLE
KT-BLASY3 - IS IN PHASE OUT
KT-BLADE3 - ELECTROMECHANICAL RAM 230V IRREVERSIBLE NEW KIT REPLACING THE KT-BL EASY3

KT-BLASY3 - ELECTROMECHANICAL RAM ASY3 WITH A 230V MOTOR 3M
Self-locking encoder-controlled ram with mechanical travel limits. The
geared motor locks the gate leaf in the closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets in galvanised steel.
ECU to be ordered separately T600.

BL ASY3
Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
max. weight 250kg.

KT-BLASY3 USING
Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
max. weight 250kg.

KT-BLASY3 KIT COMPLETE OF :

2 BL ASY3 :  SELF-LOCKING ELECTROMECHANICAL RAMS
with a 24V encoder-controlled motor and mechanical travel limits.

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

ICON : LED WARNING LIGHT
24V - 230V with an in-built aerial

2 TXQ504C4 : 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

T624 : ELECTRONIC PROGRAMMER
for two 24V encoder-controlled motors complete with speed regulation and
deceleration.

VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.

RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card.
S504 - S508 - S486 - FM - EDGE and NOIRE versions are available on request.

Compare
SKU: CA-KT-BL-ASY3 Categories: , , ,

KT-BL ASY3 – ELECTROMECHANICAL RAM 230V IRREVERSIBLE
KT-BLASY3 – IS IN PHASE OUT
KT-BLADE3 – ELECTROMECHANICAL RAM 230V IRREVERSIBLE NEW KIT REPLACING THE KT-BL EASY3

KT-BLASY3 – ELECTROMECHANICAL RAM ASY3 WITH A 230V MOTOR 3M
Self-locking encoder-controlled ram with mechanical travel limits. The
geared motor locks the gate leaf in the closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets in galvanised steel.
ECU to be ordered separately T600.

BL ASY3
Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
max. weight 250kg.

KT-BLASY3 USING
Standard version elettromeccanical RAM 24V IRREVERSIBLE for gates max. length 3m,
max. weight 250kg.

KT-BLASY3 KIT COMPLETE OF :

2 BL ASY3 :  SELF-LOCKING ELECTROMECHANICAL RAMS
with a 24V encoder-controlled motor and mechanical travel limits.

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

ICON : LED WARNING LIGHT
24V – 230V with an in-built aerial

2 TXQ504C4 : 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

T624 : ELECTRONIC PROGRAMMER
for two 24V encoder-controlled motors complete with speed regulation and
deceleration.

VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.

RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card.
S504 – S508 – S486 – FM – EDGE and NOIRE versions are available on request.

WORM SCREW AUTOMATION FORSWING GATES CARDIN TRADE SERIES BL ASY

These reliable and robust rams KT-BLASY3 MOTOR , available in 24V intensive and 230V versions, are
easy to fit without requiring brickwork, offer excellent service with regard to the
number of manoeuvres and are particularly suited for installations with columns
of all dimensions.
The following models are available:
– self-locking; the geared motor locks the gate leaf in the closed position.
– reversible; an electric lock must be fitted to guarantee that the gate leaf locks
in the closed position.

CONTROL UNIT FOR BL ASY3

The units of KT-BLASY3 MOTOR do not feature on board electronics and we advise you to use the
Cardin electronic programmers T624 – T600.
Gate positioning control is carried out via encoder
with the help of mechanical travel limits and the selfprogramming
system reduces installation times to a minimum and optimises
the programming procedure.

Repositioning takes place automatically whenever foreign objects get in the way of the
gate as it is moving.
The electronic control unit is completed by the anti-crush and
“soft start” and “soft stop” functions.
In case of blackouts, emergency manoeuvring of KT-BLASY3 motor is guaranteed (in the self-locking
versions) by a practical lever-operated manual release system protected by a
personalised key that is efficient under all working conditions.
An electric travel limit kit, guaranteeing precise control of the gate position, is also
available.

TECHNICAL SPECIFICATIONS BL ASY3 MOTOR

Motor power supply                                                  230 V
Max. motor current                                                   2 A
Motor power                                                             60 VA
Thrust                                                                      1900 N
Max opening                                                             110°
Rod stroke                                                               350 mm
Actuator speed                                                         20 mm/s
Work cycles                                                             intensive
Capacitor                                                                10 μF – –
Encoder                                                                  YES
Electrical limit switches (forseen)                               optional
Mechanical limit switches (forseen)                            AP / CH
Grease lubricant                                                      TS10

TECHNICAL SPECIFICATIONS CONTRL UNIT T600/T101
Control unit for 1/2 motors 230 V, MODEL          T124/T224
Power supply                                                   230V
Max. current                                                    6,3 A
encoder control                                               YES
torque adjustment                                           YES
slowing down.                                                 YES


GENERAL DATA ASY 3
Working temperature                         -20 +55 °C
Protection level                                  IP 44

ACCESSORIES BL ASY3 MOTOR

T600 : ELECTRONIC PROGRAMMER BL ASY3 MOTOR
for one or two 230V encoder-controlled motors complete with torque
adjustment and deceleration. Factory set for the insertion of an open
collector receiver card.

T624 : ELECTRONIC PROGRAMMER BL ASY3 MOTOR
for one or two 24V encoder-controlled motors complete with speed
regulation (with ECU) and deceleration.
Factory set for the insertion of an open collector receiver card.

SUNPOWER : POWER SUPPLY KIT
Solar panels for use with all 24Vdc automation.

BNIMH-T1 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers to work during blackouts

RECEIVERS : NOIRE OC2 / EDGE OC2
Ricevente ad innesto rapido 2 canali

BLA : MECHANICAL GATE LOCK
for installations with two gates and a horizontal electric lock.

FCAS : ELECTRICAL TRAVEL LIMITS
for 3m gates.

FCAL : ELECTRICAL TRAVEL LIMITS
for 5m gates.

BLASR : ADJUSTABLE BRACKETS
front and rear of the KT-BLASY3 MOTOR.

BLSTA : FIXED BRACKETS
front and rear.

pz.

Additional information

Weight 25 kg
Dimensions 1.50 × 0.40 × 0.40 m
