KT-BLADE324

775,00 + TAX

In stock

KT-BLADE324  KIT - COMPLETE KIT BLADE324 SERIES WITH 24V ELECTROMECHANICAL RAM

KT-BLADE324  KIT- IRREVERSIBLE SELF-LOCKING WITH ENCODER 24V MAX WEIGHT. 250KG 3M

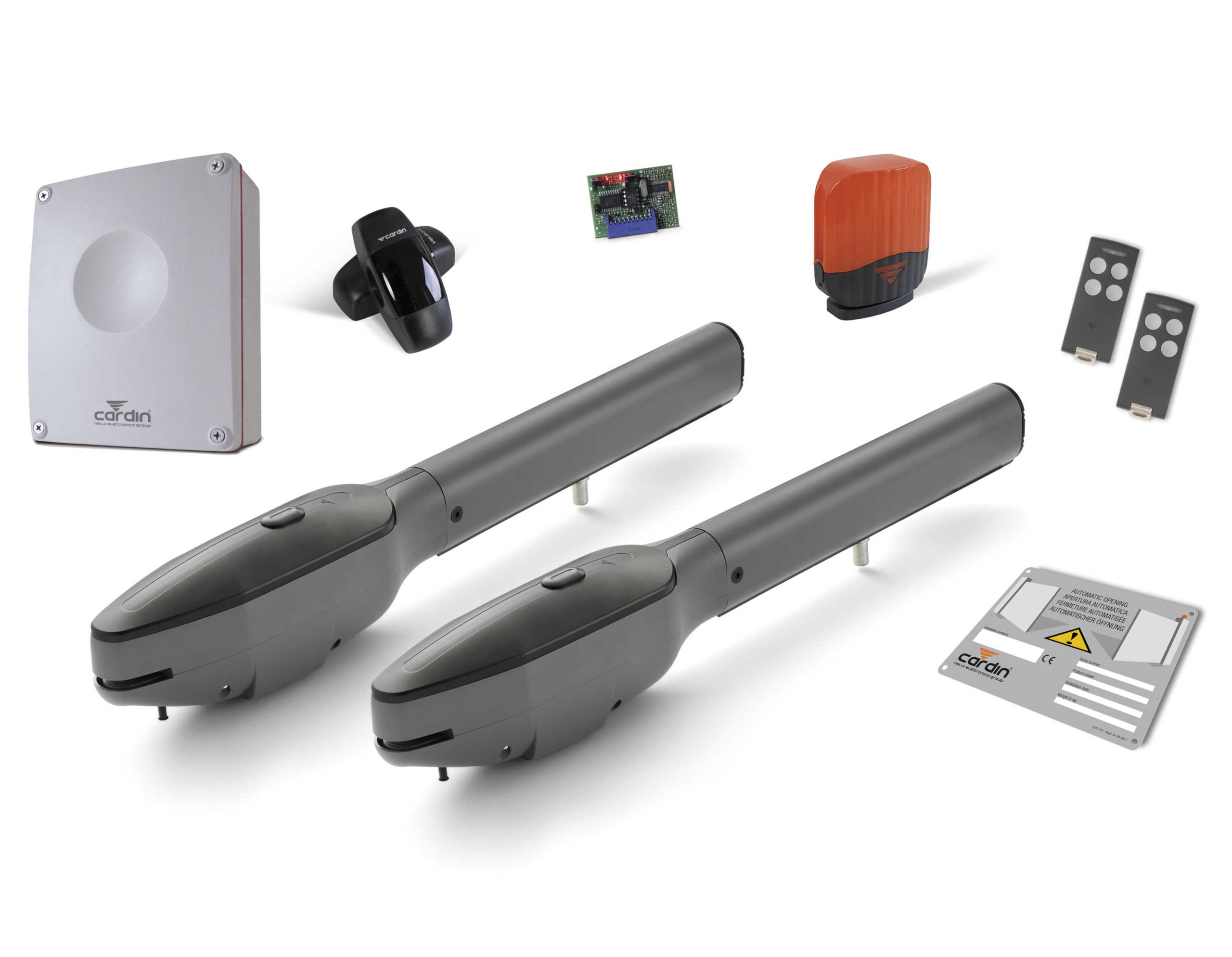

BLAD324 : 2 SELF-LOCKING ELECTROMECHANICAL RAMS
with a 24V encoder-controlled motor kit and mechanical travel limits for swing gates.
ICON : LED WARNING LIGHT
24V - 230V with an in-built aerial
TXQ504C4 : 2 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.
T624 : ELECTRONIC PROGRAMMER
For two 24V encoder-controlled motors complete with speed regulation
and deceleration.
VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.
RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card.
S504 - S508 - S486 - FM - EDGE and NOIRE versions are available on request
TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

Reversible BLADE324 encoder-controlled ram with mechanical travel limits.
An electric lock must be fitted to guarantee that the gate leaf locks in the
closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets.
Cardin ECU to be ordered separately T624.
Long version for gates max. length 3m, max. weight 300kg.

Compare
SKU: CA-KT-BLADE324 Categories: , , , ,

KT-BLADE324  KIT – COMPLETE KIT BLADE324 SERIES WITH 24V ELECTROMECHANICAL RAM

KT-BLADE324  KIT- IRREVERSIBLE SELF-LOCKING WITH ENCODER 24V MAX WEIGHT. 250KG 3M

BLAD324 : 2 SELF-LOCKING ELECTROMECHANICAL RAMS
with a 24V encoder-controlled motor kit and mechanical travel limits for swing gates.
ICON : LED WARNING LIGHT
24V – 230V with an in-built aerial
TXQ504C4 : 2 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.
T624 : ELECTRONIC PROGRAMMER
For two 24V encoder-controlled motors complete with speed regulation
and deceleration.
VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.
RSQ504OC2 : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card.
S504 – S508 – S486 – FM – EDGE and NOIRE versions are available on request
TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

Reversible BLADE324 encoder-controlled ram with mechanical travel limits.
An electric lock must be fitted to guarantee that the gate leaf locks in the
closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets.
Cardin ECU to be ordered separately T624.
Long version for gates max. length 3m, max. weight 300kg.

BLADE324 MOTOR USE
Worm screw automation for gates with a
maximum length of 3m, maximum weight 250kg.
Reversible electromechanical piston.

Worm screw automation for leaves max.

BLADE324 ELECTROMECHANICAL RAM 24V

These reliable and robust rams, available in 24V intensive and 230V versions, are
easy to fit without requiring brickwork, offer excellent service with regard to the
number of manoeuvres and are particularly suited for installations with columns of
all dimensions.

The following models are available:
– self-locking; the geared motor locks the gate leaf in the closed position.
– reversible; an electric lock must be fitted to guarantee that the gate leaf locks
in the closed position.

The units do not feature on board electronics and we advise you to use the Cardin
electronic programmers T624 – T600.
Gate positioning control is carried out via encoder with the help of mechanical
travel limits and the self-programming system reduces installation times to a
minimum and optimises the programming procedure.

Repositioning takes place automatically whenever foreign objects get in the way of
the gate as it is moving. The electronic control unit is completed by the anti-crush
and “soft start” and “soft stop” functions.

In case of blackouts, emergency manoeuvring is guaranteed (in the self-locking
versions) by a practical lever-operated manual release system protected by a
personalised key that is efficient under all working conditions.

An electric travel limit kit, guaranteeing precise control of the gate position, is also
available.
The ram can be fitted with an external lever-operated locking and unlocking
system using a remote cord.

RAM SPECIFICATIONS BLADE324

Motor power supply                                        V        24
Electrical input                                               A        2
Power input                                                    W       60
Thrust                                                            N        1900
Travel distance (worm screw)                           mm     350
Duty cycle                                                      %        70
Opening time 90°                                            s         15
Maximum opening angle                                  °          110

ELECTRONIC PROGRAMMER CONTROL UNIT BLADE324

for one or two 24V encoder-controlled motors complete with speed
regulation (with ECU data exchange) and deceleration.
Factory set for the insertion of an open collector receiver card.

Model                                                  T624
Power Supply                                        230 V
Max current                                          2 A
Electronic slowdown                             YES
Compatible with Sun Power                   YES


GENERAL FEATURES BLADE324

Operating temperature                            -20 +55 °C
Protection grade                                     IP 44
Peso                                                      24 Kg

ACCESSORIES BLADE324 MOTOR

T624 :  BLADE324  MOTOR ELECTRONIC PROGRAMMER
for one or two 24V encoder-controlled motors complete with speed
regulation (with ECU data exchange) and deceleration. Factory set for the
insertion of an open collector receiver card.

BLA : MECHANICAL GATE LOCK
for installations with two gates and a horizontal electric lock.

BLASR : ADJUSTABLE BRACKETS
front and rear.

BLSTA : FIXED BRACKETS
front and rear.

SUNPOWER : POWER SUPPLY KIT
Solar panels for use with all 24Vdc automation.
Compatible with the data exchange system between digital devices (smartphone, tablet, etc.) and the Cardin
multifunctional control units. See section 24V ECU INTERFACE DEVICES

KBNIMH-T1 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers to work during blackouts.

ELECTRICAL TRAVEL LIMITS
FCAS : for 3m gates.
FCAL : for 5m gates.

SELLCK : CYLINDER LOCK
Cylinder lock with two keys.

TRGKEY : 5 TRIANGULAR KEYS
Triangular keys in plastic.

Additional information

Weight 30 kg
Dimensions 1,50 × 0,50 × 0,40 m
