KIT STEALTH

605,00 with tax

In stock

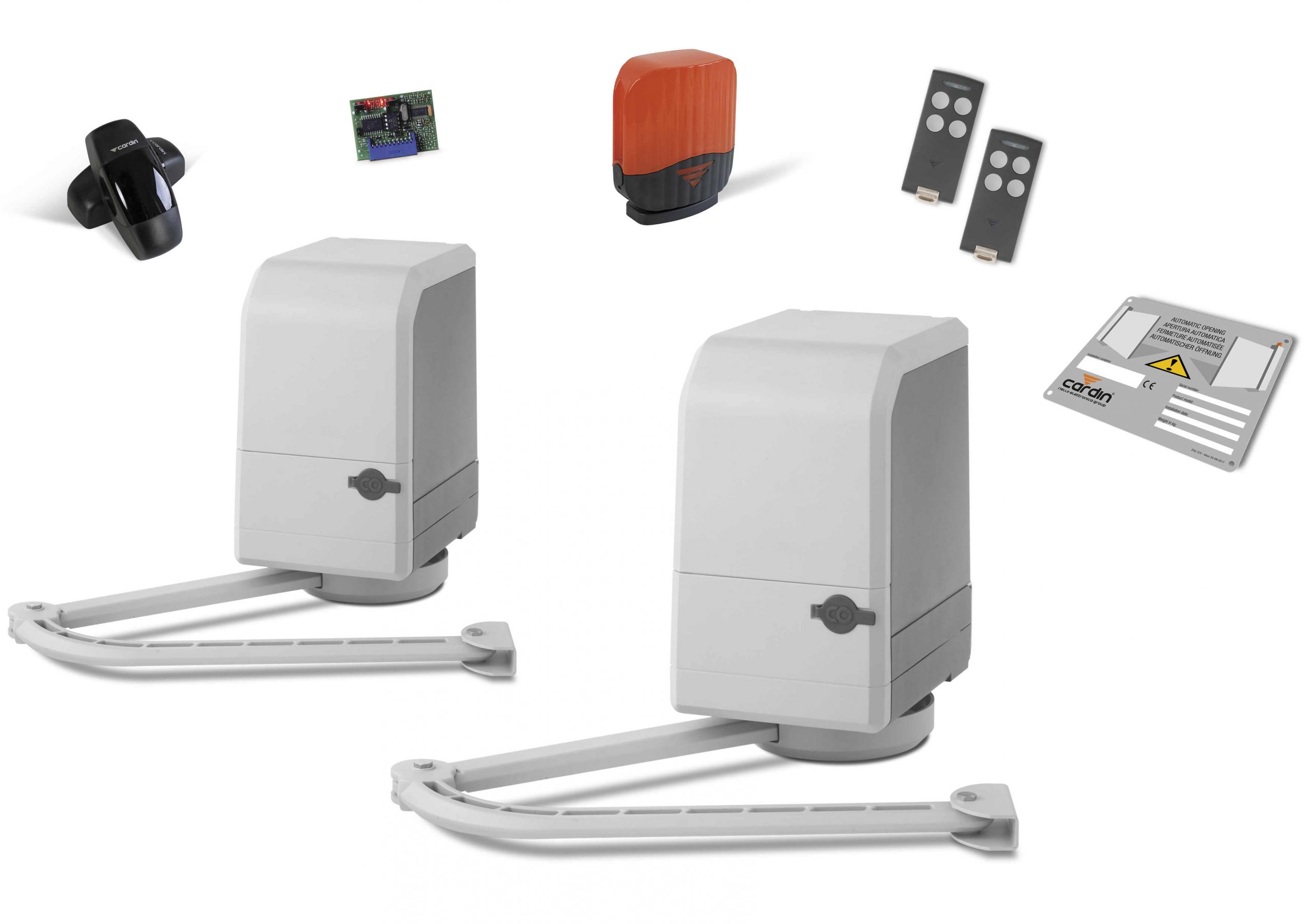

KIT-STEALTH -COMPLETE KIT STEALTH SERIES WITH 24V MOTOR

KIT-STEALTH / KIT STEALTH  - COMPLETE KIT SERIES BL STEALTH - WITH ENCODER 24V MAX WEIGHT. 200KG

KIT-STEALTH / KIT STEALTH USING
Particularly suited for installations with narrow columns that require the mounting
base to be less than 180mm in width and also for gates where the hinges are
not aligned to the edge of the column and with gate leaves of up to 2 metres
in length (2,5m with an electric lock) 200kg maximum weight.

STEALTH  : SELF-LOCKING MASTER UNIT
with a 24V motor. In-built electronic programmer with an
incorporated open collector receiver card.

STEALTHS : SELF-LOCKING SLAVE UNIT
driving the second gate.

NOIRE2E : 2 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.

RSQ504OC2 RSQ504OC2 NOIREOC2 EDGEOC2 FM400OC2  : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card.
S508 - S504 - FM - EDGE and NOIRE versions are available

LACO24LED : LED WARNING LIGHT
24V - 230V with an in-built aerial

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.

Compare
SKU: TE-KIT-STELTH Categories: , ,

KIT-STEALTH –COMPLETE KIT STEALTH SERIES WITH 24V MOTOR

KIT-STEALTH / KIT STEALTH  – COMPLETE KIT SERIES BL STEALTH – WITH ENCODER 24V MAX WEIGHT. 200KG

KIT-STEALTH / KIT STEALTH USING
Particularly suited for installations with narrow columns that require the mounting
base to be less than 180mm in width and also for gates where the hinges are
not aligned to the edge of the column and with gate leaves of up to 2 metres
in length (2,5m with an electric lock) 200kg maximum weight.

STEALTH  : SELF-LOCKING MASTER UNIT
with a 24V motor. In-built electronic programmer with an
incorporated open collector receiver card.

STEALTHS : SELF-LOCKING SLAVE UNIT
driving the second gate.

NOIRE2E : 2 4-CHANNEL TRANSMITTERS
433MHz FM ROLLING CODE.

VEDO 180 : PAIR OF SURFACE-MOUNT PHOTOELECTRIC CELLS
with adjustable lens, range 25m.

RSQ504OC2 RSQ504OC2 NOIREOC2 EDGEOC2 FM400OC2  : 2-CHANNEL RECEIVER CARD
433MHz open collector, slot-in card.
S508 – S504 – FM – EDGE and NOIRE versions are available

LACO24LED : LED WARNING LIGHT
24V – 230V with an in-built aerial

TARGA-INT : INTERNATIONAL WARNING SIGN
in PP, multi-language.



STEALTH – ELECTROMECHANICAL UNIT WITH A 24V MOTOR

KIT-STEALTH SELF-LOCKING GROUP MASTER WITH ENCODER 24V MAX. 200KG and 2,5m

STEALTH ELECTROMECHANICAL UNIT WITH A 24V MOTOR
Self-locking Master unit controlled by mechanical travel limits with
an in-built electronic programmer.
Kit battery charger + batteries to be ordered separately.
Particularly suited for installations with narrow columns that require
the mounting base to be less than 180mm in width and also for
gates where the hinges are not aligned to the edge of the column
and with gate leaves of up to 2 metres in length (2,5m with an
electric lock), 200kg maximum weight.
Manual release is carried out using a practical locking – unlocking
lever protected by a security key.

STEALTH – ELECTROMECHANICAL GROUP WITH 24V MOTOR

KIT-STEALTH is a complete automatic device for swing-to gates with one or two gate leaves,
the system is made up of a Master unit and a slave unit powering the second
swing-to gate.

Installation is facilitated and the geared motor is well anchored by the special
practical cast aluminium wall (or column) bracket which allows all types of fitting.
The compact and robust fastening bracket allows the automation to be fitted to
very narrow columns. The extremely robust cast aluminium operator arms are
fitted with joints for all applications and are able to drive hinged gates with different
constructive characteristics.

The use of direct current motors increase the performance of BLSTEALTH , guarantee high
efficiency, long life and silent running.
The integrated programmer employs mechanical travel limit controlled gate
positioning.

Repositioning takes place automatically whenever foreign objects get in the
way of the gate as it is moving. The electronic control unit is completed by the
anti-crush and “soft start” and “soft stop” functions.
Compatible with the INTPRG-3G/WF system that allows the monitoring and
programming of system parameters from remote positions.

Open collector receivers  KIT-STEALTH:
The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
Cardin catalogue.

OPERATOR ARM TECHNICAL SPECIFICATIONS STEALTH

BLSTEALTH Motor power supply        Vdc       24
Nominal electrical input                    A          3
Power input                                      W        50
Duty cycle                                         %        70
Opening time 90°                               s         13
Maximum opening angle                      °         120
Maximum torque                                Nm      250
Protection grade                                 IP        54

ELECTRONIC PROGRAMMER TECHNICAL DATA

Power supply                                 Vac    230
Nominal electrical input                  A       1,2
Maximum power yield                      W     250
Power output for 1 or 2 motors         W     60 + 60
Class II device Cls

ACCESSORIES KIT-STEALTH

BLTS24DRM : STRAIGHT ARM WITH SLIDING GUIDE
in spray-painted cast aluminium.

KBNIMH-T1 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers of KT BLSTEALTH to work during blackouts.

SUNPOWER : POWER SUPPLY KIT
Solar panels for use with all 24Vdc automation KT BLSTEALTH.

Additional information

Weight 30 kg
Dimensions 1.00 × 0.50 × 0.40 m
