HLMOLE24

285,00 + TAX

In stock

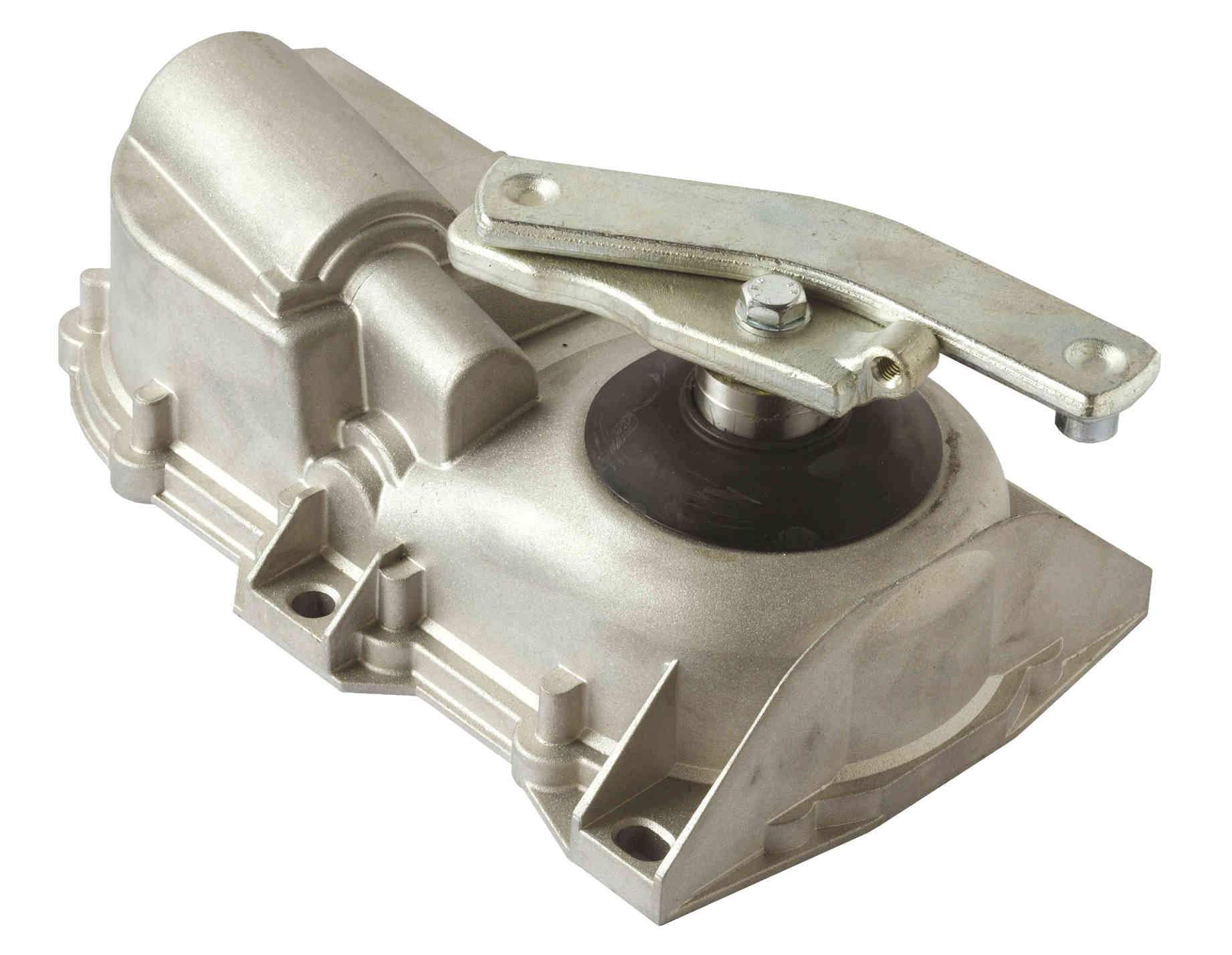

HLMOLE24 : UNDERGROUND GEAR MOTOR 24V

HLMOLE24 / HL MOLE24 ELECTROMECHANICAL UNDERGROUND OPERATOR WITH A 24V  3M
MOTOR FOR GATES WITH A 105° MAXIMUM OPENING ANGLE
Encoder controlled self-locking operator:
- fitted with a crank rod transmission system;
- supplied with a 2m connection cable;
- embedding case and Cardin electronic programmer to be ordered separately.

HL MOLE 24
24 V underground electromechanical gearmotor for leaves up to 3 m.
It replaces the old model TELCOMA ROCK

Compare
SKU: CA-HL-MOLE24 Categories: , , ,

HLMOLE24 : UNDERGROUND GEAR MOTOR 24V

HLMOLE24 / HL MOLE24 ELECTROMECHANICAL UNDERGROUND OPERATOR WITH A 24V  3M
MOTOR FOR GATES WITH A 105° MAXIMUM OPENING ANGLE
Encoder controlled self-locking operator:
– fitted with a crank rod transmission system;
– supplied with a 2m connection cable;
– embedding case and Cardin electronic programmer to be ordered separately.

HL MOLE 24
24 V underground electromechanical gearmotor for leaves up to 3 m.
It replaces the old model TELCOMA ROCK

UNDERGROUND AUTOMATION FOR SWING GATES CARDIN TRADE SERIES HLMOLE

The automation HLMOLE24 is made up of a series of components consisting of an electronic
programmer, one or two sealed self-locking operators complete with embedding
cases and a special 2-metre long connecting cable.

The robust and reliable electromechanical operator HLMOLE24 guarantees optimum
performance under all working conditions and its system of ball bearing
balanced pivoting levers guarantees regular and silent running. Internally the
automation is fitted with highly resistant cast iron helicoidal gears.
The hot dip galvanized or stainless steel embedding cases are guaranteed to
remain rust free throughout time.

Particularly suited for installations that do not allow column installations or where
the automation has to be completely hidden with the possibility of reaching an
opening angle up to 360° (with an optional accessory).

CONTROL UNIT FOR HLMOLE24

The units of HLMOLE24 do not feature on board electronics and we advise you to use a Cardin
electronic programmer:
– Cardin T600 for 1 or 2 230V motors;
– Cardin T624 for 1 or 2 24V motors;

On the 24V model gate position is encoder controlled with the use of mechanical
travel limits and self-programming thus reducing installation times to a minimum
and optimising the programming procedure. Repositioning takes place
automatically whenever foreign objects get in the way of the gate as it is moving.
The electronic control unit is completed by the anti-crush and “soft start” and “soft
stop” functions.

The reversible geared motor HLMOLE24 guarantees that the gate will remain blocked when
closed.
The manual emergency movement system is easy to operate using the
personalised “locking-unlocking” key or a lever operated system and rearming is
automatic.

TECHNICAL SPECIFICATIONS HLMOLE24

Motor power supply                                              24 V
Max. motor current                                               5 A
Motor power                                                        200 W
Max. torque                                                         400 Nm
Max gate weight                                                   350 Kg
Work cycles                                                         intensive
Max. gate length                                                  3500 mm
Max opening                                                        115°
Encoder                                                              YES
Mechanical stops                                                 YES
Grease lubricant                                                  TS10

GENERAL DATA MOLE24
Working temperature                                    -20 +55 °C
Protection level                                            IP 67
Weight                                                        11 Kg

ACCESSORIES HLMOLE24

EMBEDDING CASES HLMOLE24
complete with connection lever and adjustable mechanical travel limits.
All versions are fitted with a stainless steel cover.
HLBOX
Hot dip galvanized anti-rust treatment, manual release
mechanism to be ordered separately.
HLBOXI
Structure completely in stainless steel, manual release
mechanism to be ordered separately.
HLBOXC
Hot dip galvanized anti-rust treatment, release mechanism
with a personalised key included in the embedding case lever unit
(not compatible with ACCMOLE360).

T600 : ELECTRONIC PROGRAMMER HLMOLE230
for one or two 230V encoder-controlled motors complete with torque
adjustment and deceleration. Factory set for the insertion of an open
collector receiver card.

T624 : ELECTRONIC PROGRAMMER HL MOLE24
for one or two 24V encoder-controlled motors complete with speed
regulation (with ECU) and deceleration.
Factory set for the insertion of an open collector receiver card.

SUNPOWER : POWER SUPPLY KIT
Solar panels for use with all 24Vdc automation.

BNIMH-T1 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers to work during blackouts

ACCESSORY FOR 360° OPENING
with pinion and chain.

SBLHL : MANUAL RELEASE MECHANISM
with a personalised key for HLBOX – HLBOXI HEMBEDDED CASE

SBLSHL : MANUAL RELEASE MECHANISM
activated by means of a lever for HLBOX – HLBOXI HEMBEDDED CASE

Additional information

Weight 20 kg
Dimensions 0,50 × 0,50 × 0,50 m
