EL SNAP-RAPID

1.346,00 + TAX

In stock

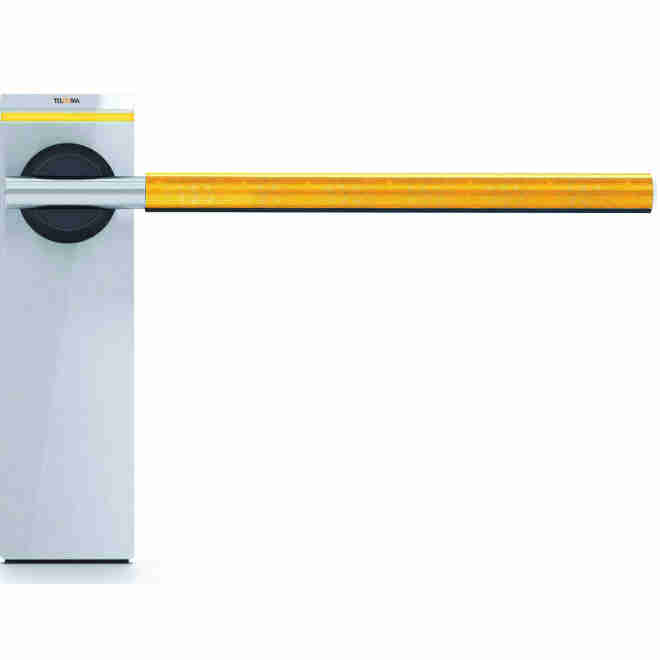

ELSNAP-RAPID  - SELF-PROGRAMMING ROAD BARRIER 24V MOTOR

ELSNAP RAPID / ELSNAP-RAPID - SELF-PROGRAMMING ROAD BARRIER WITH A 24V MOTOR TO 4M BOOMS
Encoder-controlled movement.
Robust barrier designed to last through time, complete with boom
holder, warning lights built in to the hood and an external Allen key
operated release system.
The “master/slave” function allows you to synchronise two barriers
working in unison.
Boom and boom balancing spring to be ordered apart (see
paragraph 'operational constraints' on page 156).

SNAP RAPID
Electromechanical barrier 24 V, in sturdy steel structure. C/w control unit and encoder.
Max boom length 6,25 m. Net span 3 m.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: CA-SNAP-RAPID Categories: , ,

ELSNAP-RAPID  – SELF-PROGRAMMING ROAD BARRIER 24V MOTOR

ELSNAP RAPID / ELSNAP-RAPID – SELF-PROGRAMMING ROAD BARRIER WITH A 24V MOTOR TO 4M BOOMS
Encoder-controlled movement.
Robust barrier designed to last through time, complete with boom
holder, warning lights built in to the hood and an external Allen key
operated release system.
The “master/slave” function allows you to synchronise two barriers
working in unison.
Boom and boom balancing spring to be ordered apart (see
paragraph ‘operational constraints’ on page 156).

ELSNAP-RAPID / SNAP4 – ELECTROMECHANICAL BARRIERS UP TO 4 M

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

ELSNAP RAPID BARRIER Electromechanical barrier 24 Vdc, designed for fast and fluid movements with booms up to 6 m.
Latest generation control unit and complete range of accessories.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical with the in-built control unit housed on top, the LED lights and various connections
available for safety devices and battery back-up.
Designed to blend into modern architectures, Snap is made of a sturdy steel structure
and stainless steel panels for reliable operations and long lasting appearance.
SNAP is compatible with SUN POWER Telcoma.

SNAP RAPID
Electromechanical barrier 24 V, in sturdy steel structure. C/w control unit and encoder.
Max boom length 6,25 m. Net span 3 m.

AUTOMATION FOR ROAD BARRIERS CARDIN TRADE SERIES EL

Road ELSNAP-RAPID barrier with an enhanced geared motor powered by 24V, designed for
access control of passageways up 6m with rapid and fluid boom movement.
The linear boom-holder cabinet made of robust steel panels spray-painted in
different finishings allows the SNAP range of road barriers to blend in perfectly into
the most modern of architectural urban contexts at the same time guaranteeing
its reliability throughout time.

The installation and programming times of ELSNAP-RAPID barrier are rapid and the
electronic programmer is positioned in the hood of the structure allowing ease of access.
The barriers can be fitted with buffer batteries which allow them to function with
the SUN POWER system for isolated installations where mains power supply is not
available or where you simply wish to reduce energy costs.

ELSNAP-RAPID BARRIER Control unit

The SN24 control electronics of ELSNAP-RAPID barrier has several stand-out characteristics beginning with
the progressive, calibrated management of the motor power with the possibility
to adjust the manoeuvring speed, the “master/slave” function allowing you to
synchronise two barriers working in unison, internal diagnostics indicating main
errors and the vast array of available command and safety accessories.

The integrated programmer of ELSNAP-RAPID barrier allows encoder controlled boom positioning, automatic
repositioning and self-programming. The electronic control unit is completed by
the anti-crush and “soft start” and “soft stop” functions.

Open collector:
The product range is factory set for the insertion of an open collector receiver
card that guarantees compatibility with all the radio control series available in the
Cardin catalogue.

TECHNICAL SPECIFICATIONS ELSNAP-RAPID BARRIER SNAPS

Motor power supply                                             24 V
Max. motor current                                              12 A
Motor power                                                        350 W
Max. torque                                                         600 Nm
Max. boom length                                                 4250 mm
Opening time                                                        3 sec
Max opening                                                         100°
Work cycles                                                          intensive
Encoder                                                               YES
Limit switches                                                      YES
Grease lubricant                                                   TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit
Model                                                      SN24/4
Power supply                                            230 V
Max. current                                             1,5 A
Electronic slow down                                 YES
Compatible with Sun Power                        YES

GENERAL DATA of ELSNAP-RAPID BARRIER
Working temperature                               -20 +55 °C
Protection level                                        IP 54
Weight                                                     50 Kg

ACCESSORIES ELSNAP BARRIER

BOOMS
1 SNAPPER3 : Rigid boom in white spray-painted aluminium. Length 3,25m Ø70mm.
Complete with end caps and passive rubber safety edge.
2 SNAPPER4 : Rigid boom in white spray-painted aluminium. Length 4,25m Ø70mm.
Complete with end caps and passive rubber safety edge.
3 SNAPPER6 : Rigid boom in white spray-painted aluminium. Length 5,25m Ø70mm.
Complete with end caps and passive rubber safety edge.
4 SNAPPER6 : Rigid boom in white spray-painted aluminium. Length 6,25m Ø70mm.
Complete with end caps and passive rubber safety edge.

SNR SNAP : JOINT
for ELSNAP-RAPID – ELSNAPS. Maximum passageway 3 metres.

LED LIGHTS
for SNAPPER3 (with 4 leds), SNAPPER4 (with 5 leds), SNAPPER5 (with 6
leds) and SNAPPER6 (with 8 leds).
SNAPPER3 LED
SNAPPER4 LED
SNAPPER5 LED
SNAPPER5 LED

ELSRA : ALUMINIUM FOLD-UP MESH (L 2000 x H 610mm)

ELSRS : PLASTIC FOLD-UP MESH (L 2000 x H 610mm)

SUPPORT FORKS / POLES

ELUFS1 : FIXED ALUMINIUM SUPPORT FORK (H 910mm)
(for ELSNAP-RAPID, 4, 5/6).
ELUFS1-ML : FIXED ALUMINIUM SUPPORT FORK (H 910 mm)
with a magnetic suction cup (for ELSNAP-RAPID, 4, 5/6).
ELUMS1 : MOBILE SUPPORT POLE (H 1200mm)
(for ELSNAP-RAPID, 4, 5/6).

FIX SNAP – FIX RAP4 : ANCHOR PLATE
ground fastening base

ADEK : ADHESIVE REFLECTIVE TAPE (1000 x 50mm)
for EL SNAP barrier.

STICKERS : ADHESIVE REFLECTIVE TAPE STRIPS.
for SNAP barriers. Lots of 12 pcs.

SUNPOWER : POWER SUPPLY KIT
Solar panels for use with all 24Vdc automation.

KBNIMH-T1 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers of ELSNAP-RAPID barrier to work during blackouts.

Additional information

Weight 25 kg
Dimensions 2,00 × 0,60 × 0,50 m
