ARM

In stock

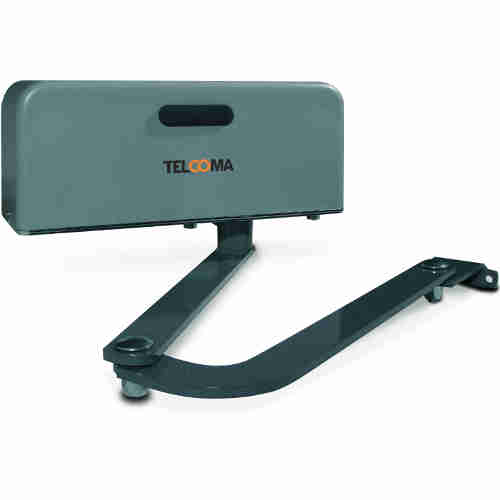

ARM - ARTICULATED FOR SWING GATES

ARM MOTOR IS IN PHASE OUT -
REPLACED WITH MOTORS : BLGRIFFE24M or BLGRIFFE24TM

ARM - ARTICULATED ARM FOR SWING GATES
Electromechanical 230 V actuators for swing gates up to 3 meters.
Ideal for very wide columns and where the articulated arms delivers a smooth and fluid movement.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable thanks to the sturdy mechanical parts and the powerful motor.

230 V irreversible electromechanical gearmotor, with painted articulated arm.
For leafs up to 3 m.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

Compare
SKU: TE-ARM Categories: , ,

ARM – ARTICULATED FOR SWING GATES

ARM MOTOR IS IN PHASE OUT –
REPLACED WITH MOTORS : BLGRIFFE24M or BLGRIFFE24TM

ARM – ARTICULATED MOTOR FOR SWING GATES
Electromechanical 230 V actuators for swing gates up to 3 meters.
Ideal for very wide columns and where the articulated arms delivers a smooth and fluid movement.
Safe and Precise thanks to the encoder and the slowing down in opening and closing.
Practical thanks to the control unit with plug-in receiver and self-learning function.
Reliable thanks to the sturdy mechanical parts and the powerful motor.

230 V irreversible electromechanical gearmotor, with painted articulated arm.
For leafs up to 3 m.

If you are an electrician or automation specialist, call +39.0558778855
or write an email to: commerciale@automazione-cancelli.net
to get a quote/offer and an extra discount

TECHNICAL SPECIFICATIONS

Motor power supply                                      230 V
Max. motor current                                       1,9 A
Motor power                                                 400 W
Max. torque                                                  400 Nm
Max gate weight                                            200 Kg
Work cycles                                                 30%
Max. gate length                                           3000 mm
Max opening                                                 130°
Capacitor                                                     10 μF
Termal protection                                         150 °C
Encoder                                                      YES
Mechanical limiters switcs                             YES
Grease lubricant                                          TS10

TECHNICAL SPECIFICATIONS BUILT IN Control unit
model                                                        T201
Power supply                                              230 V
Max. current                                               6,3 A
Electronic slow down                                   YES
Compatible with Sun Power                         NO

GENERAL DATA KIT

Working temperature                                   -20 +55 °C
Protection level                                           IP 44
Weight                                                       22,5 Kg
Pallet                                                         12 pcs

ACCESSORIES ARM MOTOR

ELV
Vertical/horizontal electric lock 12 V.

SERIE OC2
2 channels plug in receiver.

T201/T600
Control unit for 1/2 motors 230 V, with encoder control, torque adjustment and slowing down.


BRLARM
Longer articulated arm for leafs up to 3,5 m.

BLA
Leaf stopper.

Additional information

Weight 10 kg
Dimensions 1,00 × 0,40 × 0,40 m
