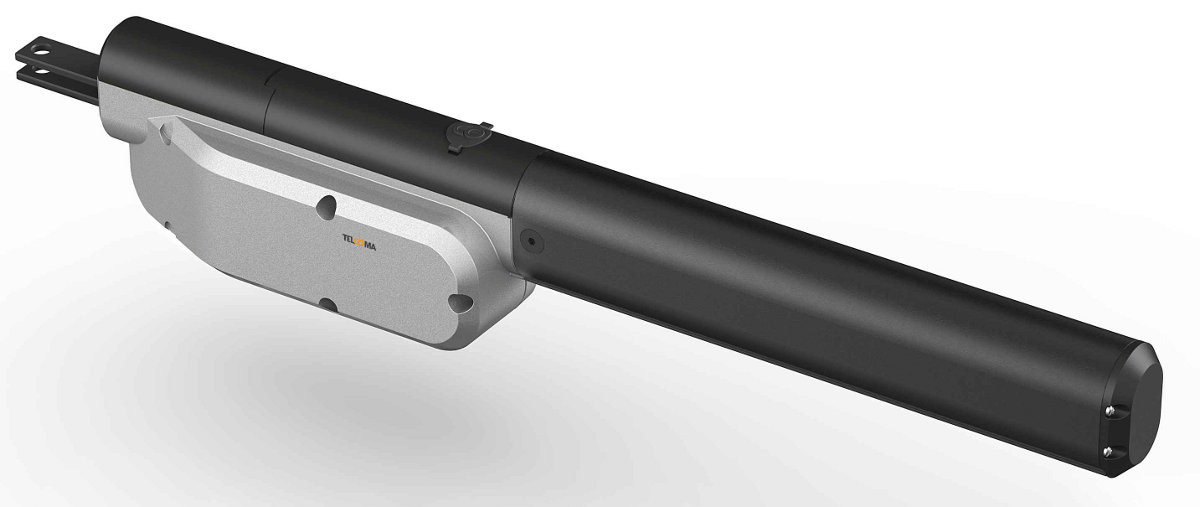

BL ASY5REV - ELECTROMECHANICAL RAM 230V REVERSIBLE
BL ASY5REV - IS IN PHASE OUT
BLADE5REV - ELECTROMECHANICAL RAM 230V REVERSIBLE NEW MOTOR REPLACING THE BL EASY5REV

BL ASY5REV - ELECTROMECHANICAL RAM WITH A 230V MOTOR 5M
Self-locking encoder-controlled ram with mechanical travel limits. The
geared motor locks the gate leaf in the closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets in galvanised steel.
ECU to be ordered separately T600.

BL ASY5REV
Standard version elettromeccanical RAM 230V IRREVERSIBLE for gates max. length 5m,
max. weight 350kg.

Compare
SKU: CA-BL-ASY5REV Categories: , , ,

BL ASY5REV – ELECTROMECHANICAL RAM 230V REVERSIBLE
BL ASY5REV – IS IN PHASE OUT
BLADE5REV – ELECTROMECHANICAL RAM 230V REVERSIBLE NEW MOTOR REPLACING THE BL EASY5REV

BL ASY5REV – ELECTROMECHANICAL RAM WITH A 230V MOTOR 5M
Self-locking encoder-controlled ram with mechanical travel limits. The
geared motor locks the gate leaf in the closed position.
Supplied with all the fittings necessary for mounting one ram including
the front and rear brackets in galvanised steel.
ECU to be ordered separately T600.

BL ASY5REV
Standard version elettromeccanical RAM 230V IRREVERSIBLE for gates max. length 5m,
max. weight 350kg.

ASY 5REV / ASY5REV – ELECTROMECHANICAL MOTOR 230V FOR SWING GATES
Electromechanical operator, ideal for swing gates up to 5 metres.
Equipped with encoder, release with encoded key and rear swing support.
Safe thanks to the precision and sensitivity of the encoder.
Practical electrical connections and manual release.
Versatile in all models and accessories.
Reliable with sturdy structure in corrosion treated aluminium

WORM SCREW AUTOMATION FORSWING GATES CARDIN TRADE SERIES BL ASY

These reliable and robust rams BL ASY5REV MOTOR , available in 24V intensive and 230V versions, are
easy to fit without requiring brickwork, offer excellent service with regard to the
number of manoeuvres and are particularly suited for installations with columns
of all dimensions.
The following models are available:
– self-locking; the geared motor locks the gate leaf in the closed position.
– reversible; an electric lock must be fitted to guarantee that the gate leaf locks
in the closed position.

CONTROL UNIT FOR BL ASY5REV

The units of BL ASY5REV MOTOR do not feature on board electronics and we advise you to use the
Cardin electronic programmers T624 – T600.
Gate positioning control is carried out via encoder
with the help of mechanical travel limits and the selfprogramming
system reduces installation times to a minimum and optimises
the programming procedure.

Repositioning takes place automatically whenever foreign objects get in the way of the
gate as it is moving.
The electronic control unit is completed by the anti-crush and
“soft start” and “soft stop” functions.
In case of blackouts, emergency manoeuvring of BL ASY5REV motor is guaranteed (in the self-locking
versions) by a practical lever-operated manual release system protected by a
personalised key that is efficient under all working conditions.
An electric travel limit kit, guaranteeing precise control of the gate position, is also
available.

TECHNICAL SPECIFICATIONS BL ASY5REV MOTOR

Motor power supply                                                  230 V
Max. motor current                                                   2 A
Motor power                                                             60 VA
Thrust                                                                      1900 N
Max opening                                                             110°
Rod stroke                                                               350 mm
Actuator speed                                                         20 mm/s
Work cycles                                                             intensive
Capacitor                                                                10 μF – –
Encoder                                                                  YES
Electrical limit switches (forseen)                               optional
Mechanical limit switches (forseen)                            AP / CH
Grease lubricant                                                      TS10

TECHNICAL SPECIFICATIONS CONTRL UNIT T600/T101
Control unit for 1/2 motors 230 V, MODEL          T124/T224
Power supply                                                   230V
Max. current                                                    6,3 A
encoder control                                               YES
torque adjustment                                           YES
slowing down.                                                 YES


GENERAL DATA ASY 5REV
Working temperature                         -20 +55 °C
Protection level                                  IP 44

ACCESSORIES BL ASY5REV MOTOR

T600 : ELECTRONIC PROGRAMMER BL ASY5REV MOTOR
for one or two 230V encoder-controlled motors complete with torque
adjustment and deceleration. Factory set for the insertion of an open
collector receiver card.

T624 : ELECTRONIC PROGRAMMER BL ASY524REV MOTOR
for one or two 24V encoder-controlled motors complete with speed
regulation (with ECU) and deceleration.
Factory set for the insertion of an open collector receiver card.

SUNPOWER : POWER SUPPLY KIT
Solar panels for use with all 24Vdc automation.

BNIMH-T1 : KIT BATTERY CHARGER + NiMH BATTERIES
Allows the 24V programmers to work during blackouts

RECEIVERS : NOIRE OC2 / EDGE OC2
Ricevente ad innesto rapido 2 canali

BLA : MECHANICAL GATE LOCK
for installations with two gates and a horizontal electric lock.

FCAS : ELECTRICAL TRAVEL LIMITS
for 3m gates.

FCAL : ELECTRICAL TRAVEL LIMITS
for 5m gates.

BLASR : ADJUSTABLE BRACKETS
front and rear of the BL ASY5REV MOTOR.

BLSTA : FIXED BRACKETS
front and rear.

Additional information

Weight 10 kg
Dimensions 1,50 × 0,40 × 0,3 m
